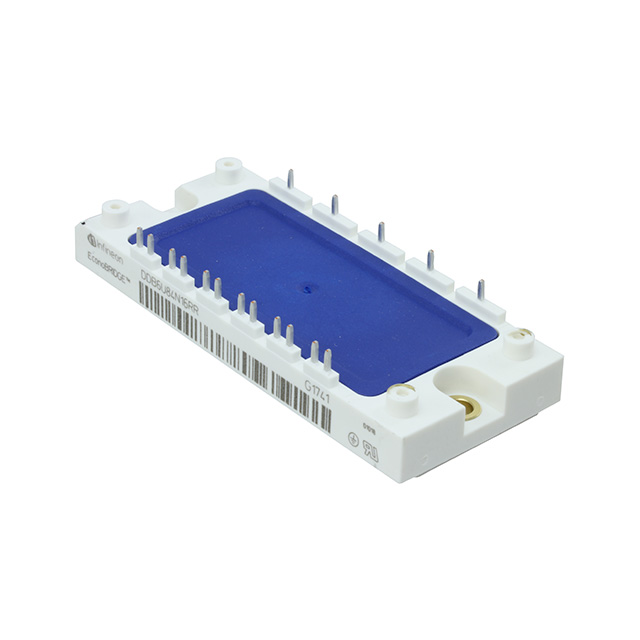

DDB6U84N16RRBOSA1
IGBT MOD 1200V 50A 350WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies' DDB6U84N16RRBOSA1 is an NPT IGBT module featuring a single chopper configuration. This module offers a robust 1200 V breakdown voltage and a continuous collector current capability of 50 A, with a maximum power dissipation of 350 W. The module exhibits a Vce(on) of 3.2V at 20V gate-emitter voltage and 50A collector current. Input capacitance (Cies) is specified at 3.3 nF at 25 V. Designed for chassis mounting, this component operates at junction temperatures up to 150°C. It finds application in power conversion systems across industrial automation, renewable energy, and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single Chopper |
| Operating Temperature | 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 20V, 50A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 50 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 350 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 3.3 nF @ 25 V |
