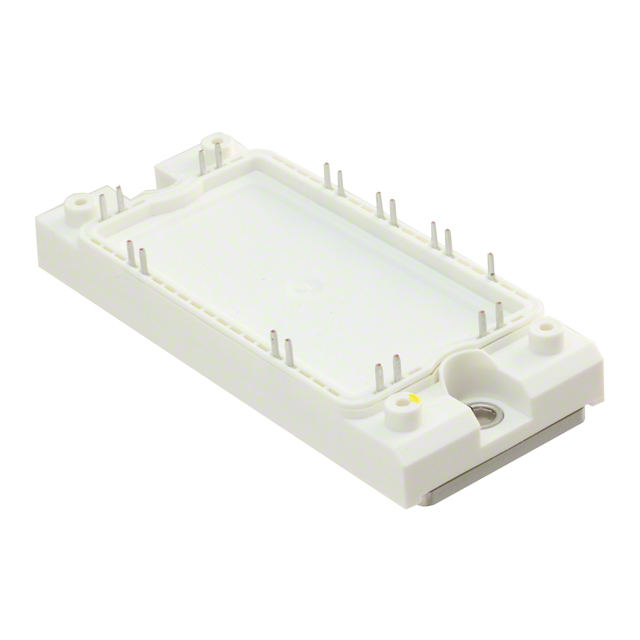

DDB6U134N16RRBOSA1
IGBT MOD 1600V 70A 500WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies DDB6U134N16RRBOSA1 is an NPT IGBT module designed for high-power applications. This single-configuration module features a robust 1600V collector-emitter breakdown voltage and a continuous collector current capability of 70A, with a maximum power dissipation of 500W. Key electrical characteristics include a Vce(on) of 2.75V at 15V Vge and 70A Ic, and an input capacitance (Cies) of 5.1 nF at 25V. The module integrates an NTC thermistor for temperature monitoring and operates at junction temperatures up to 150°C. It is presented in a chassis mountable module package, suitable for demanding industrial environments. This component finds application in power conversion systems across industries such as industrial automation, renewable energy, and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.75V @ 15V, 70A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 70 A |
| Voltage - Collector Emitter Breakdown (Max) | 1600 V |
| Power - Max | 500 W |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 5.1 nF @ 25 V |
