BYM300B170DN2HOSA1
IGBT MOD 650V 40A 20MWManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

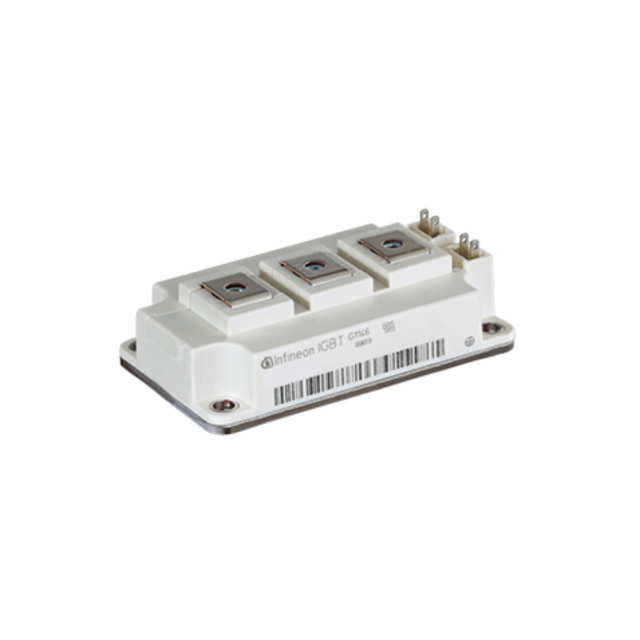

Infineon Technologies BYM300B170DN2HOSA1 is a Trench Field Stop IGBT module featuring two independent switch configurations. This chassis mount module provides a 650 V collector-emitter breakdown voltage and a maximum collector current of 40 A. The Vce(on) is specified at 1.55 V maximum for 15 V gate-emitter voltage and 25 A collector current. It includes an integrated NTC thermistor for temperature monitoring. The component is suitable for applications in industrial power systems and motor drives. Operating temperature range is -40°C to 150°C (TJ). Input capacitance (Cies) is 2.8 nF at 25 V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | 2 Independent |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.55V @ 15V, 25A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 40 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Power - Max | 20 mW |
| Current - Collector Cutoff (Max) | 40 µA |
| Input Capacitance (Cies) @ Vce | 2.8 nF @ 25 V |
