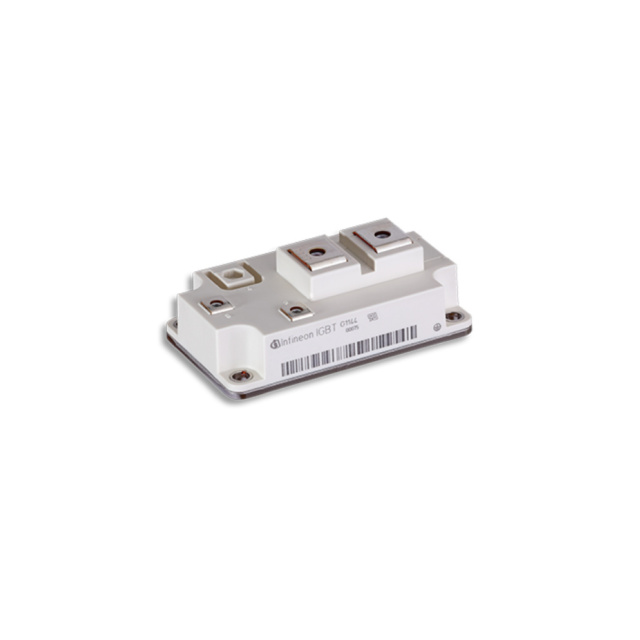

BYM300A120DN2HOSA1
IGBT MOD 1200V 450A 1000WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More
Infineon Technologies BYM300A120DN2HOSA1 is a single IGBT module designed for high-power applications. This chassis-mount component features a robust 1200 V collector-emitter breakdown voltage and a high continuous collector current capability of 450 A. With a maximum power dissipation of 1000 W, it is engineered for demanding thermal environments, operating at junction temperatures up to 150°C. The module's standard input and bulk packaging make it suitable for integration into various industrial systems. This device finds application in power factor correction, electric vehicle powertrains, and industrial motor drives.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | - |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 450 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1000 W |
