BSM100GB60DLCHOSA1
IGBT MOD 600V 130A 445WManufacturer: Infineon Technologies
Categories: IGBT Modules
Quality Control: Learn More

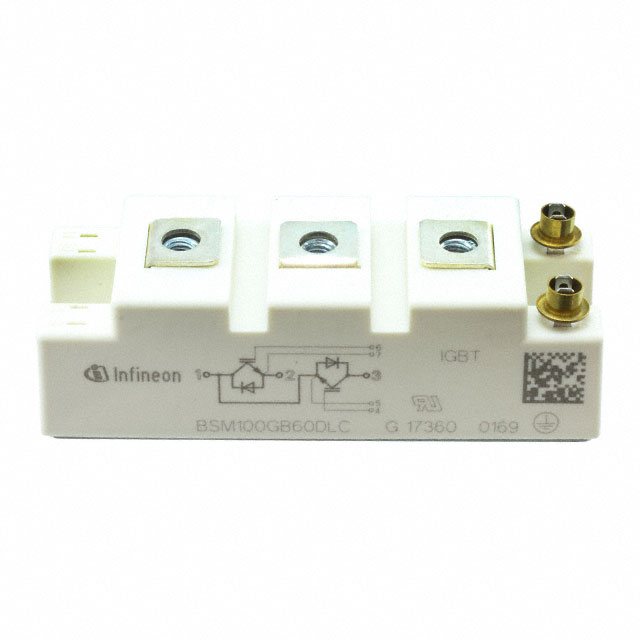

Infineon Technologies BSM100GB60DLCHOSA1 is a single IGBT module designed for high-power applications. This chassis mount module features a 600 V collector-emitter breakdown voltage and a maximum collector current of 130 A, with a power dissipation rating of 445 W. The on-state voltage (Vce(on)) is specified at 2.45 V at 15 V gate voltage and 100 A collector current. The module operates within a temperature range of -40°C to 125°C and has a collector cutoff current of 500 µA. This component is suitable for use in industrial motor drives, power supplies, and electric vehicle powertrains. The product is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 16 week(s)Product Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 100A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 130 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 445 W |
| Current - Collector Cutoff (Max) | 500 µA |
