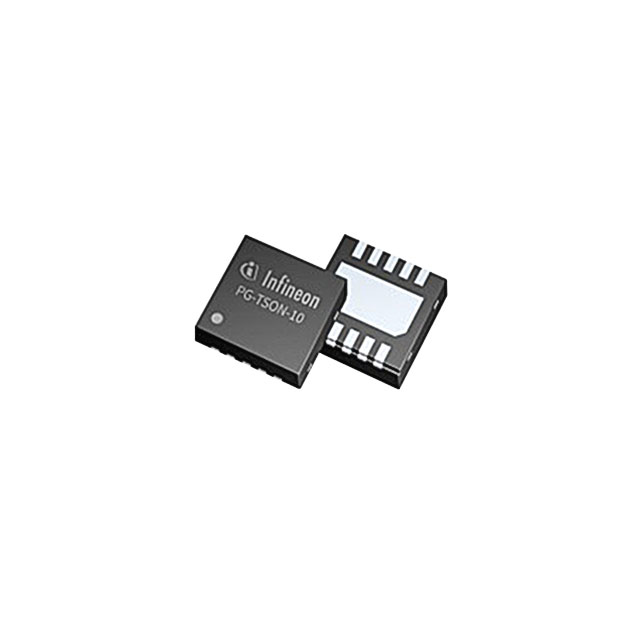

TLF11251LDXUMA1
IC GATE DRVR HALF-BRIDGE 10TDFNManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Non-Inverting PG-TSON-10-2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFDFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 2.35V ~ 7V |
| Input Type | Non-Inverting |
| Supplier Device Package | PG-TSON-10-2 |
| Rise / Fall Time (Typ) | 60ns, 60ns |
| Channel Type | Single |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 2.31V, 4.69V |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A |
| Grade | Automotive |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
