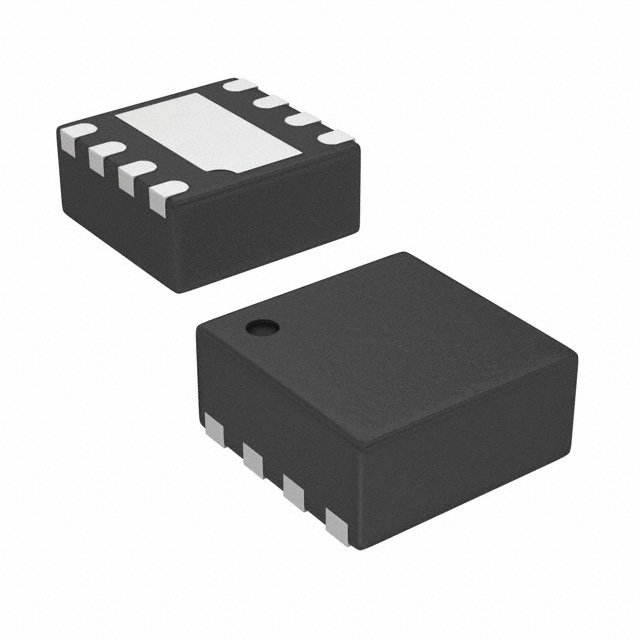

PX3519XTMA1
IC GATE DRVR HALF-BRIDGE 8VDSONManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies PX3519XTMA1, a half-bridge gate driver, features a non-inverting input and is housed in a PG-VDSON-8 package. This device provides two independent gate drivers, each capable of sourcing and sinking 2A peak output current. The half-bridge configuration is supported with a maximum high-side bootstrap voltage of 30V. Designed for N-Channel MOSFET gate drive, it operates with a supply voltage range of 4.5V to 8V. Typical rise and fall times are 10ns, facilitating efficient switching. Logic voltage thresholds for VIH/VIL are 0.8V and 2.5V respectively. This component is suitable for surface mounting and operates within an extended temperature range of -40°C to 150°C (TJ). It finds application in power management systems, motor control, and power factor correction circuits across various industrial and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 8V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 30 V |
| Supplier Device Package | PG-VDSON-8 |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
