PX3517FTMA1
IC GATE DRVR HALF-BRIDGE 10TDSONManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More

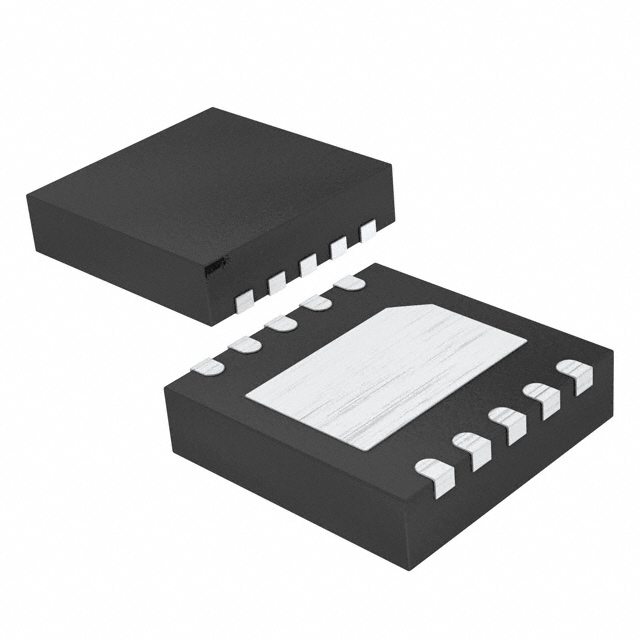

Infineon Technologies PX3517FTMA1 is a half-bridge gate driver designed for surface mounting in a 10-TDSON (3x3) package. This component features two non-inverting gate drivers, each capable of sourcing and sinking 2A of peak output current. The high-side voltage capability reaches up to 30V (bootstrap), facilitating efficient driving of N-channel MOSFETs. With a supply voltage range of 4.5V to 8V, this device offers typical rise and fall times of 10ns. It is engineered for operation across an extended temperature range of -40°C to 150°C (TJ). This component is utilized in applications such as power supplies, motor control, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 8V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 30 V |
| Supplier Device Package | 10-TDSON (3x3) |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
