IRS2336DMTRPBF
IC GATE DRVR HALF-BRIDGE 48MLPQManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More

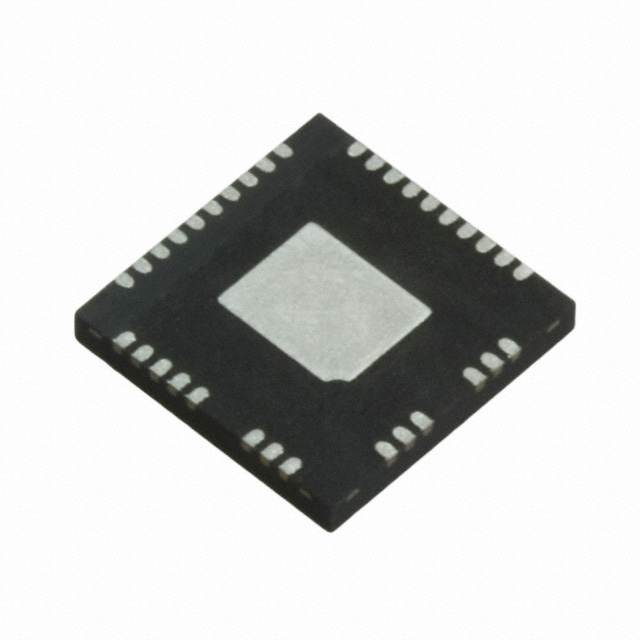

Infineon Technologies IRS2336DMTRPBF is a 3-phase, half-bridge gate driver IC housed in a 48-MLPQ package with 34 leads. This device features six independent drivers, each capable of handling a high-side voltage up to 600V with a bootstrap supply. Optimized for driving IGBT and N-Channel MOSFETs, it delivers peak output currents of 200mA sourcing and 350mA sinking. The input logic is inverting, with specified VIL and VIH levels of 0.8V and 2.5V, respectively. Typical rise and fall times are 125ns and 50ns. This component operates within a supply voltage range of 10V to 20V and is designed for surface mounting. The IRS2336DMTRPBF is suitable for applications in motor control, power supplies, and industrial automation systems. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad, 34 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 10V ~ 20V |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Supplier Device Package | 48-MLPQ, 34 Leads (7x7) |
| Rise / Fall Time (Typ) | 125ns, 50ns |
| Channel Type | 3-Phase |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 200mA, 350mA |
| Programmable | Not Verified |
