IRS2008MTRPBFAUMA1
IC GATE DRVR HALF-BRIDGE 14MLPQManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More

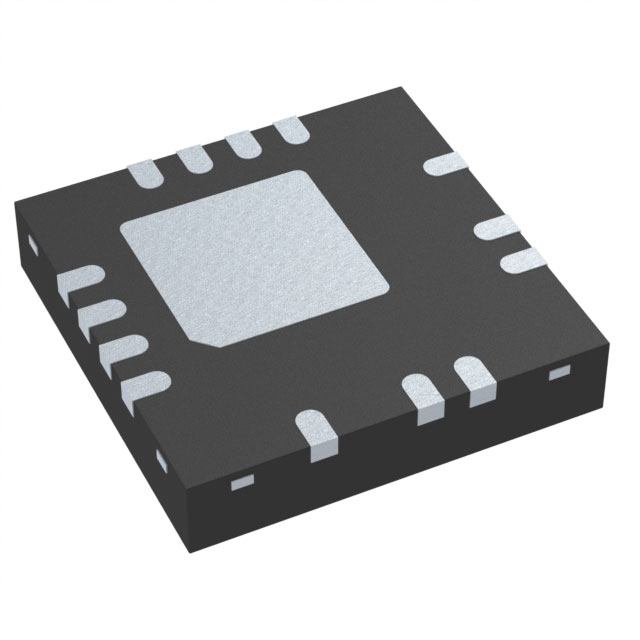

Infineon Technologies IRS2008MTRPBFAUMA1 is a Half-Bridge Gate Driver IC. This synchronous driver features a 200V maximum bootstrap voltage and operates with a 10V to 20V supply. It delivers peak output currents of 290mA source and 600mA sink, with typical rise and fall times of 70ns and 30ns respectively. The input type is CMOS, with logic thresholds at 0.8V (VIL) and 2.5V (VIH). Designed for driving IGBT and N-Channel MOSFETs, this component is housed in a 14-MLPQ (4x4) surface mount package for efficient thermal management via an exposed pad. It is suitable for applications in industrial automation, motor control, and power supply systems. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 10V ~ 20V |
| Input Type | CMOS |
| High Side Voltage - Max (Bootstrap) | 200 V |
| Supplier Device Package | 14-MLPQ (4x4) |
| Rise / Fall Time (Typ) | 70ns, 30ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 290mA, 600mA |
| Programmable | Not Verified |
