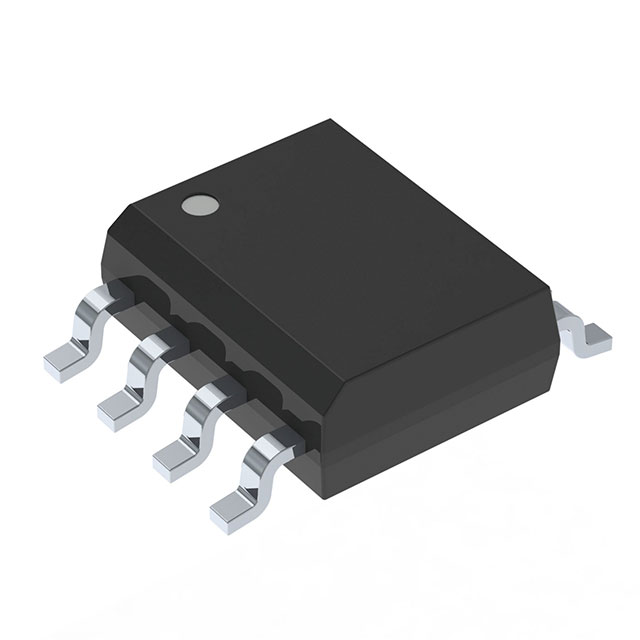

IR2183SPBF
IC GATE DRVR HALF-BRIDGE 8SOICManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Inverting, Non-Inverting 8-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 10V ~ 20V |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Supplier Device Package | 8-SOIC |
| Rise / Fall Time (Typ) | 40ns, 20ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.7V |
| Current - Peak Output (Source, Sink) | 1.9A, 2.3A |
| Programmable | Not Verified |
