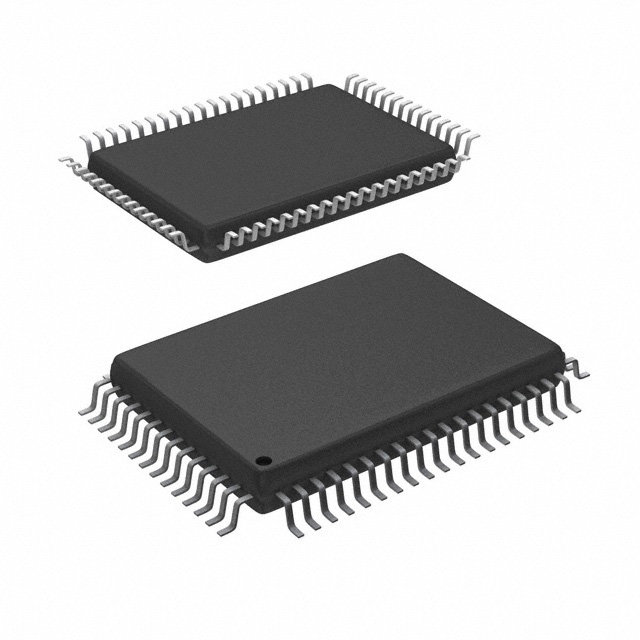

IR2138QPBF
IC GATE DRVR HALF-BRIDGE 64MQFPManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies IR2138QPBF is a 3-phase half-bridge gate driver IC designed for high-power applications. This device features six independent gate drivers, each capable of handling IGBTs. The IR2138QPBF operates with a supply voltage range of 12.5V to 20V and supports high-side voltages up to 600V, utilizing a bootstrap mechanism. It offers both inverting and non-inverting input logic, with VIL/VIH thresholds at 0.8V and 2V respectively. Peak output current capabilities are 350mA source and 200mA sink, with typical rise and fall times of 80ns and 25ns. The IR2138QPBF is housed in a 64-MQFP surface-mount package and is specified for operation across an extended temperature range of -40°C to 125°C (TJ). This component is commonly utilized in industrial motor control, power factor correction, and uninterruptible power supply (UPS) systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-BQFP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 12.5V ~ 20V |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Supplier Device Package | 64-MQFP (20x14) |
| Rise / Fall Time (Typ) | 80ns, 25ns |
| Channel Type | 3-Phase |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 6 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 350mA, 200mA |
| Programmable | Not Verified |
