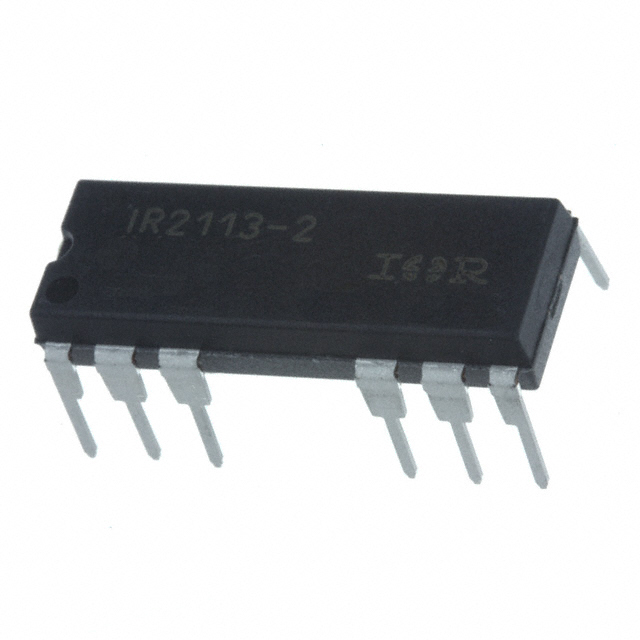

IR2113-2
IC GATE DRVR HALF-BRIDGE 16DIPManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies IR2113-2 is a dual-channel, half-bridge gate driver IC offering non-inverting inputs. Designed with independent high-side and low-side outputs, this component delivers a peak output current of 2A source and 2A sink. It supports gate drive for IGBTs and N-Channel MOSFETs, featuring a high-side voltage capability up to 600V. The device operates over a supply voltage range of 3.3V to 20V, with typical rise and fall times of 25ns and 17ns respectively. Logic voltage thresholds are specified at 6V for VIL and 9.5V for VIH. The IR2113-2 is housed in a 16-PDIP package with through-hole mounting. This component is suitable for applications in industrial motor control, power supplies, and automotive systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm), 14 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 3.3V ~ 20V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Supplier Device Package | 16-PDIP |
| Rise / Fall Time (Typ) | 25ns, 17ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
