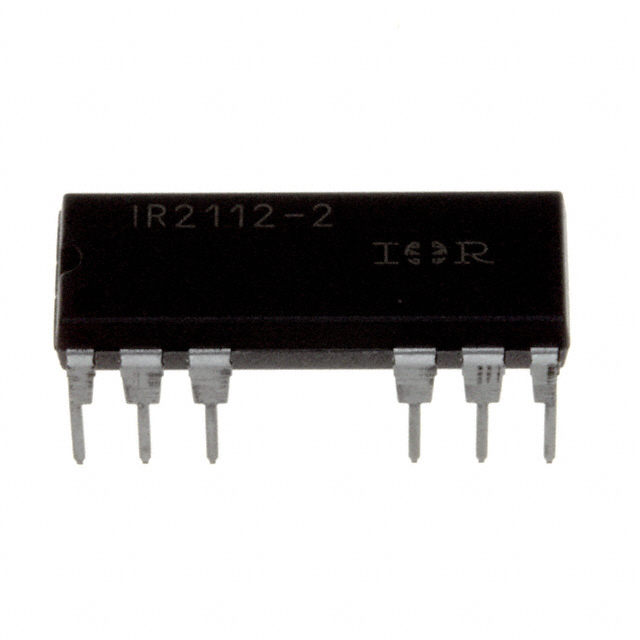

IR2112-2
IC GATE DRVR HI/LOW SIDE 16DIPManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies' IR2112-2 is a dual-channel, high-side or low-side gate driver IC. This non-inverting component, housed in a 16-PDIP package, delivers robust gate drive capabilities for IGBT and N-Channel MOSFET devices. It features independent high-side and low-side channels, with peak output currents of 250mA sourcing and 500mA sinking. The high-side voltage capability extends up to 600V, supported by a bootstrap charge pump. Logic voltage thresholds for VIH and VIL are 9.5V and 6V respectively. The operating temperature range is -40°C to 150°C. Typical rise and fall times are 80ns and 40ns. This device finds application in industrial motor control, power supplies, and lighting systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm), 14 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 10V ~ 20V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Supplier Device Package | 16-PDIP |
| Rise / Fall Time (Typ) | 80ns, 40ns |
| Channel Type | Independent |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Programmable | Not Verified |
