IR2110SPBF

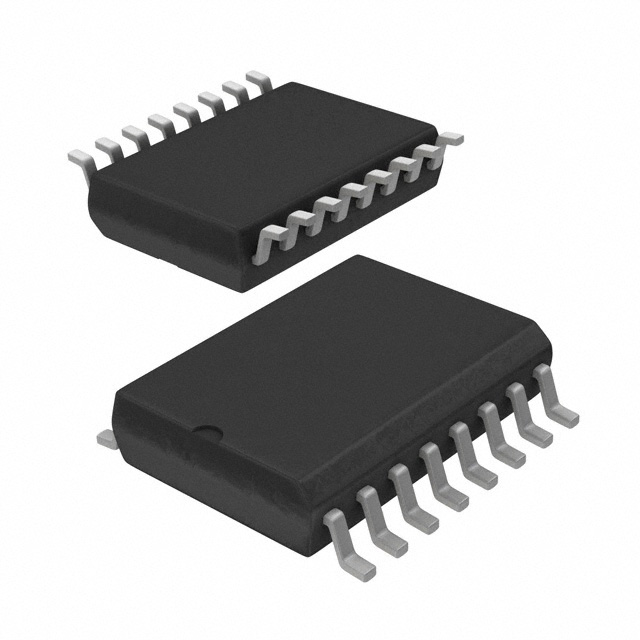

IC GATE DRVR HALF-BRIDGE 16SOICManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies IR2110SPBF is a high-voltage, high-speed power MOSFET and IGBT gate driver IC. This half-bridge driver features independent, non-inverting inputs and offers robust performance with a 2A peak output current capability for both source and sink. It supports a wide supply voltage range from 3.3V to 20V and is designed to drive gate-charge optimized devices with its typical 25ns rise and 17ns fall times. The device boasts a high-side voltage capability up to 500V, making it suitable for demanding applications. The IR2110SPBF is housed in a 16-SOIC package for surface mounting and operates across an industrial temperature range of -40°C to 150°C. This component finds application in power conversion systems, motor control, and industrial power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 3.3V ~ 20V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 500 V |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 25ns, 17ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
