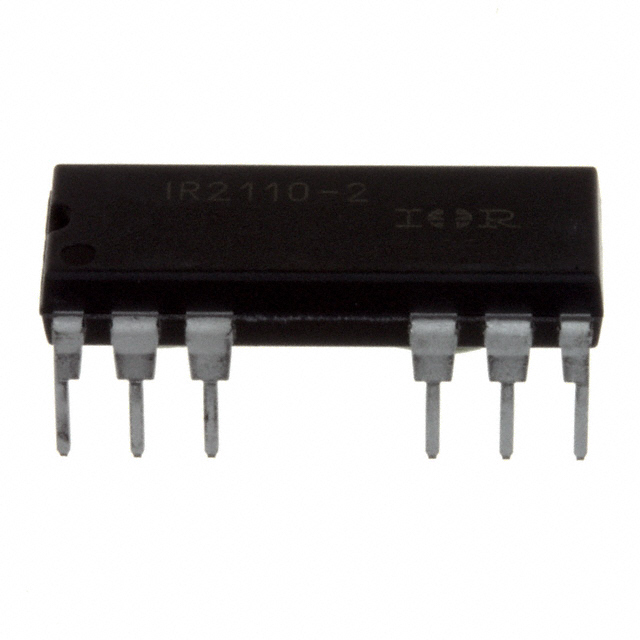

IR2110-2
IC GATE DRVR HALF-BRIDGE 16DIPManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies IR2110-2 is a dual-channel, half-bridge gate driver IC. This non-inverting driver is designed for high-side and low-side switching of IGBTs and N-channel MOSFETs. It features independent drives with a peak output current of 2A source and 2A sink, enabling robust control of power transistors. The device operates with a supply voltage range of 3.3V to 20V and supports a high-side voltage of up to 500V via a bootstrap configuration. Typical rise and fall times are 25ns and 17ns, respectively. The IR2110-2 is housed in a 16-lead PDIP package and is suitable for applications in industrial motor drives, power supplies, and lighting systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm), 14 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 3.3V ~ 20V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 500 V |
| Supplier Device Package | 16-PDIP |
| Rise / Fall Time (Typ) | 25ns, 17ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
