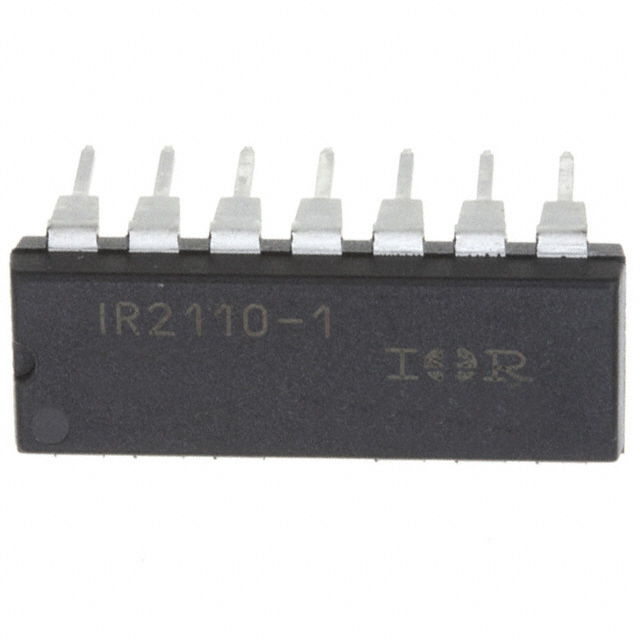

IR2110-1PBF
IC GATE DRVR HALF-BRIDGE 14DIPManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies' IR2110-1PBF is a high-voltage, high-speed, half-bridge gate driver IC. This non-inverting driver features independent high and low-side outputs, capable of sourcing and sinking 2A peak current each. Designed for driving IGBTs and N-channel MOSFETs, it supports a high-side voltage up to 500V. The device operates with a supply voltage range of 3.3V to 20V and typical rise/fall times of 25ns and 17ns, respectively. The logic voltage thresholds are 6V (VIL) and 9.5V (VIH). Packaged in a 14-pin DIP (0.300" wide), the IR2110-1PBF is suitable for through-hole mounting. This component is widely utilized in industrial motor control, power supply applications, and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm), 13 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 3.3V ~ 20V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 500 V |
| Supplier Device Package | 14-PDIP |
| Rise / Fall Time (Typ) | 25ns, 17ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
