IR2102SPBF
IC GATE DRVR HALF-BRIDGE 8SOICManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies IR2102SPBF is a high-performance, half-bridge gate driver integrated circuit. This 8-SOIC package device is designed for driving IGBTs and N-channel MOSFETs with independent, inverting logic inputs. It features a bootstrap capability for the high-side driver, supporting up to 600V. The IR2102SPBF delivers peak output currents of 210mA source and 360mA sink, with typical rise and fall times of 100ns and 50ns respectively. Operating across a wide temperature range of -40°C to 150°C, this component is suitable for applications in industrial motor control, power supplies, and lighting systems. The supply voltage range is 10V to 20V, with logic voltage thresholds for VIH at 3V and VIL at 0.8V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 10V ~ 20V |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Supplier Device Package | 8-SOIC |
| Rise / Fall Time (Typ) | 100ns, 50ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 210mA, 360mA |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
IR21362S
IC GATE DRVR HALF-BRIDGE 28SOIC

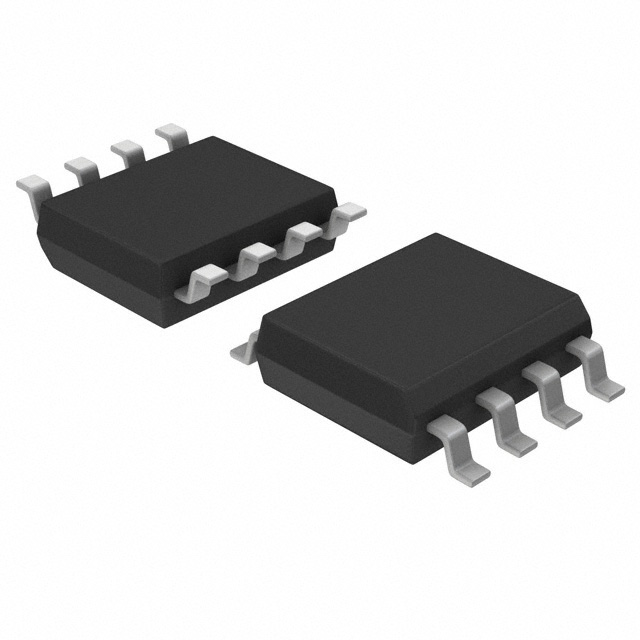

IRS2817DSTRPBF
