IR2010PBF
IC GATE DRVR HALF-BRIDGE 14DIPManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More

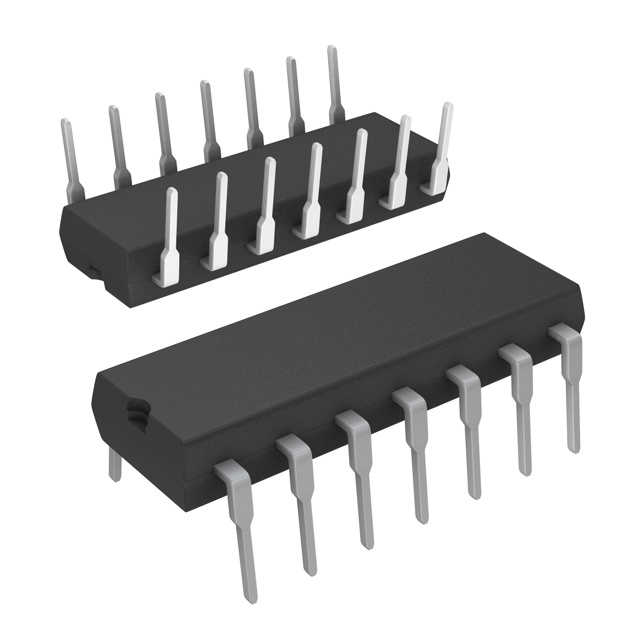

Half-Bridge Gate Driver IC Non-Inverting 14-DIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 10V ~ 20V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 200 V |
| Supplier Device Package | 14-DIP |
| Rise / Fall Time (Typ) | 10ns, 15ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Programmable | Not Verified |
