IR1166SPBF
IC GATE DRVR LOW-SIDE 8SOICManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies' IR1166SPBF is a SmartRectifier™ series single-channel, non-inverting, low-side gate driver. This electronic component is housed in an 8-SOIC package, designed for surface mounting. It features a peak output current capability of 1A source and 4A sink, with typical rise and fall times of 21ns and 10ns, respectively. The device operates with a supply voltage range of 11.4V to 18V and supports logic input levels of 2V (VIL) and 2.15V (VIH). The IR1166SPBF is suitable for applications requiring efficient control of N-channel MOSFETs in a low-side configuration. Its robust design and performance characteristics make it a valuable component in power supply, motor control, and industrial automation systems.
Additional Information
Series: SmartRectifier™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Voltage - Supply | 11.4V ~ 18V |
| Input Type | Non-Inverting |
| Supplier Device Package | 8-SOIC |
| Rise / Fall Time (Typ) | 21ns, 10ns |
| Channel Type | Single |
| Driven Configuration | Low-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 2V, 2.15V |
| Current - Peak Output (Source, Sink) | 1A, 4A |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
IR1167ASTRPBF
IC GATE DRVR LOW-SIDE 8SOIC

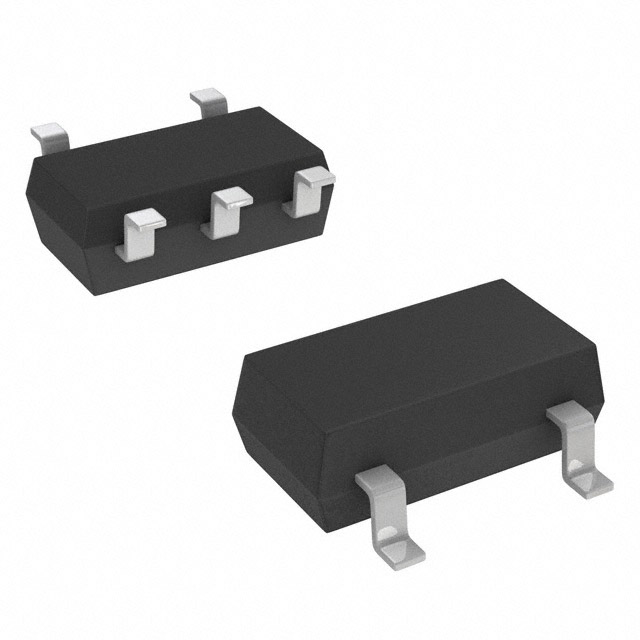

IR1161LTRPBF
