CHL8550CRT

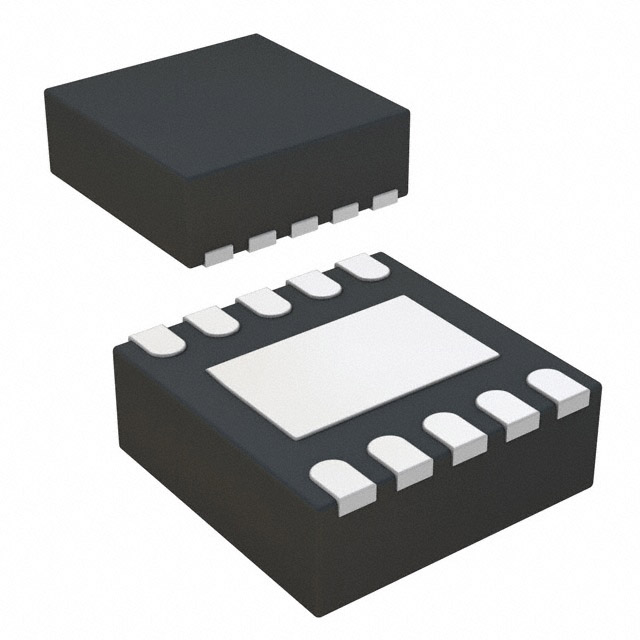

IC GATE DRVR HALF-BRIDGE 10DFNManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies CHL8550CRT is a half-bridge gate driver IC designed for efficient power switching applications. This non-inverting component features two independent drivers capable of delivering 2A peak output current for both sourcing and sinking. Optimized for N-channel MOSFETs, the CHL8550CRT supports bootstrap voltages up to 35V. Its 10-VFDFN (3x3) exposed pad package ensures excellent thermal performance and ease of surface mounting. With typical rise and fall times of 10ns and 8ns respectively, and a supply voltage range of 4.5V to 5.5V, this device is suitable for high-frequency operation. The CHL8550CRT is engineered for demanding industrial, automotive, and power supply systems requiring robust gate drive solutions. It operates across a temperature range of -40°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 35 V |
| Supplier Device Package | 10-DFN (3x3) |
| Rise / Fall Time (Typ) | 10ns, 8ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 1V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
