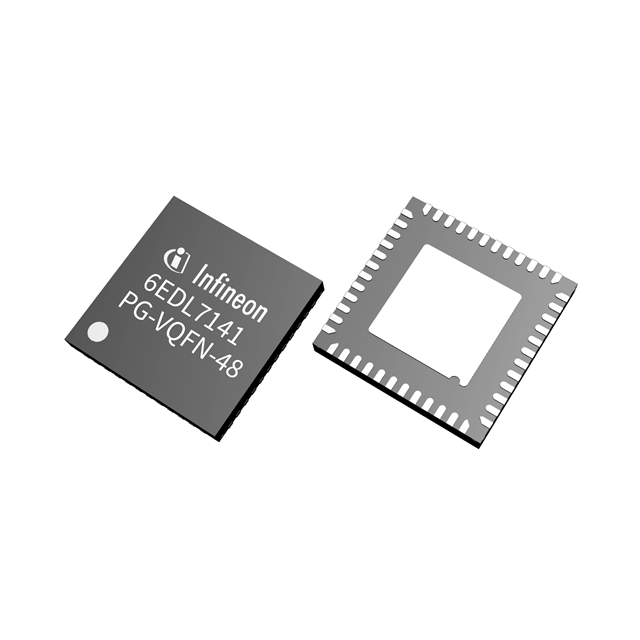

6EDL7141XUMA1
IC GATE DRVR HALF-BRIDGE 48VFQFNManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Non-Inverting PG-VQFN-48-78
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 5.5V ~ 60V |
| Input Type | Non-Inverting |
| Supplier Device Package | PG-VQFN-48-78 |
| Rise / Fall Time (Typ) | - |
| Channel Type | 3-Phase |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 3 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Programmable | Not Verified |
Request a Quote
