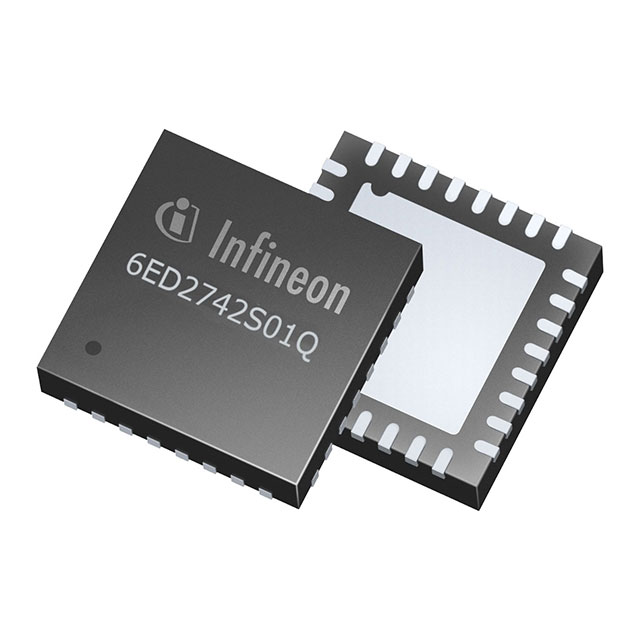

6ED2742S01QXTMA1
IC GATE DRVR HALF-BRIDGE 32VQFNManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Non-Inverting 32-VQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-PowerVFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 6V ~ 140V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 160 V |
| Supplier Device Package | 32-VQFN (5x5) |
| Rise / Fall Time (Typ) | 20ns, 10ns |
| Channel Type | 3-Phase |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 6 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.4V, 1.4V |
| Current - Peak Output (Source, Sink) | 1A, 2A |
| Programmable | Not Verified |
