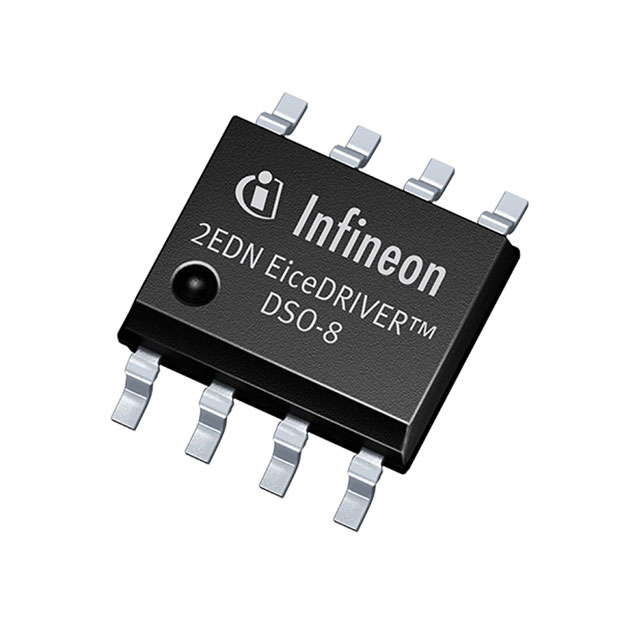

2EDN8533FXTMA1
IC GATE DRVR LOW-SIDE 8SOICManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Low-Side Gate Driver IC Inverting PG-DSO-8
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 20V |
| Input Type | Inverting |
| Supplier Device Package | PG-DSO-8 |
| Rise / Fall Time (Typ) | 8.6ns, 6ns |
| Channel Type | Independent |
| Driven Configuration | Low-Side |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.4V, 1.9V |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Programmable | Not Verified |
