2EDN8523GXTMA1

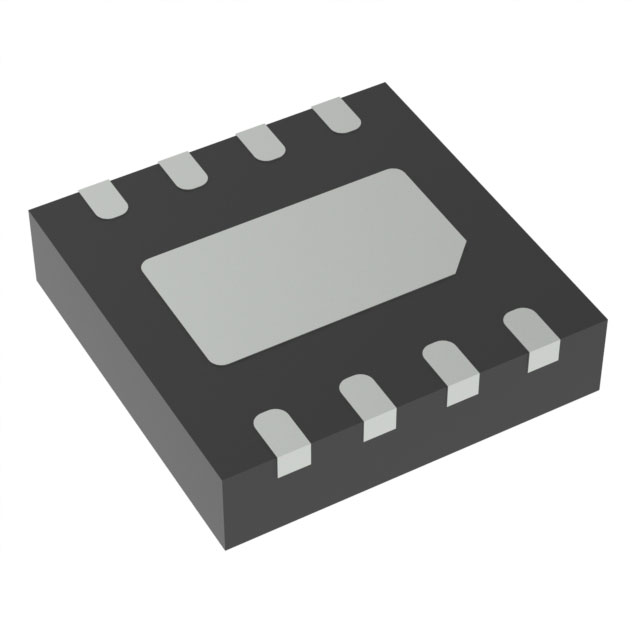

IC GATE DRVR LOW-SIDE 8WSONManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies 2EDN8523GXTMA1 is a high-performance, two-channel, low-side gate driver from the EiceDriver™ series. This device is designed to drive N-channel MOSFETs with its inverting input logic. It offers independent control for each channel and delivers a peak output current of 5A source and 5A sink, enabling rapid switching with typical rise and fall times of 5.3ns and 4.5ns respectively. The device operates over a supply voltage range of 4.5V to 20V and features logic thresholds of 1.1V (VIL) and 1.98V (VIH). Packaged in an 8-WDFN Exposed Pad (PG-WSON-8-1) for surface mounting, the 2EDN8523GXTMA1 is suitable for demanding applications across automotive, industrial, and power supply sectors. Its robust design ensures reliable operation across an extended temperature range of -40°C to 150°C (TJ).
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 20V |
| Input Type | Inverting |
| Supplier Device Package | PG-WSON-8-1 |
| Rise / Fall Time (Typ) | 5.3ns, 4.5ns |
| Channel Type | Independent |
| Driven Configuration | Low-Side |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.1V, 1.98V |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Programmable | Not Verified |
