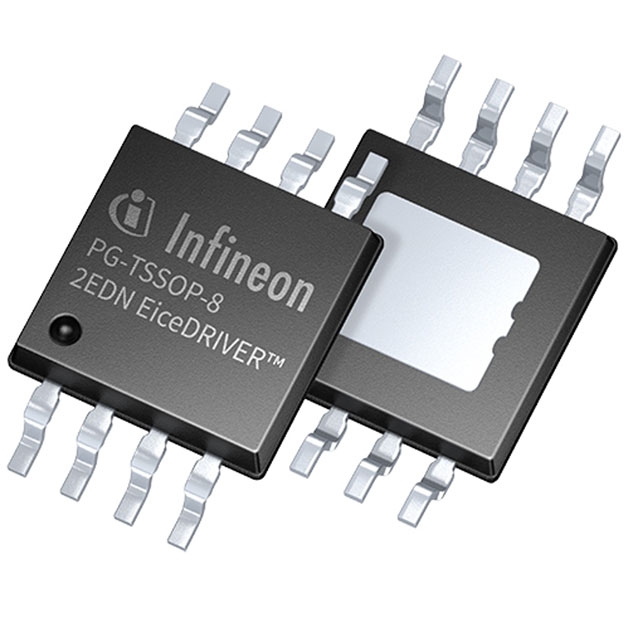

2EDN7524RXTMA1
IC GATE DRVR LOW-SIDE 8TSSOPManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More

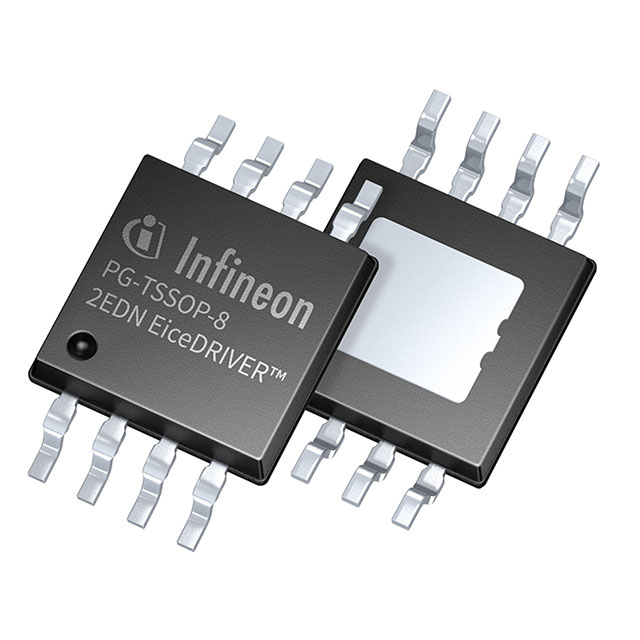

Low-Side Gate Driver IC Non-Inverting PG-TSSOP-8
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 20V |
| Input Type | Non-Inverting |
| Supplier Device Package | PG-TSSOP-8 |
| Rise / Fall Time (Typ) | 5.3ns, 4.5ns |
| Channel Type | Independent |
| Driven Configuration | Low-Side |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.1V, 1.98V |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
2ED300C17STROHSBPSA1
IGBT MODULE 1700V 30A

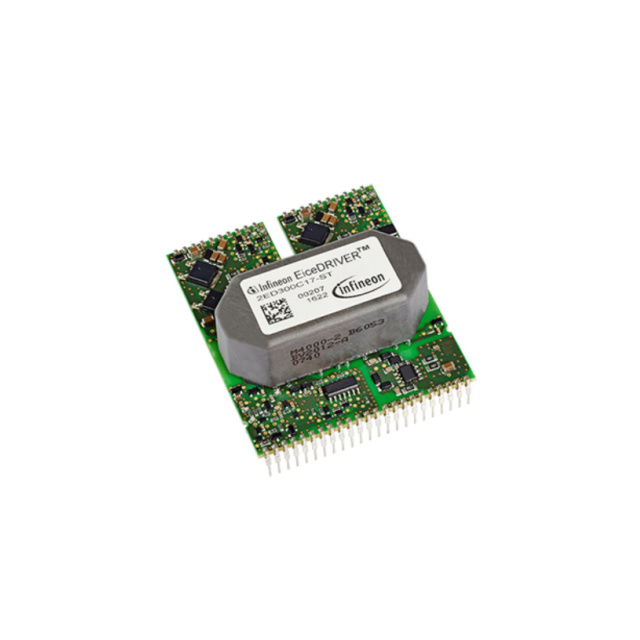

2ED300C17SROHSBPSA1
