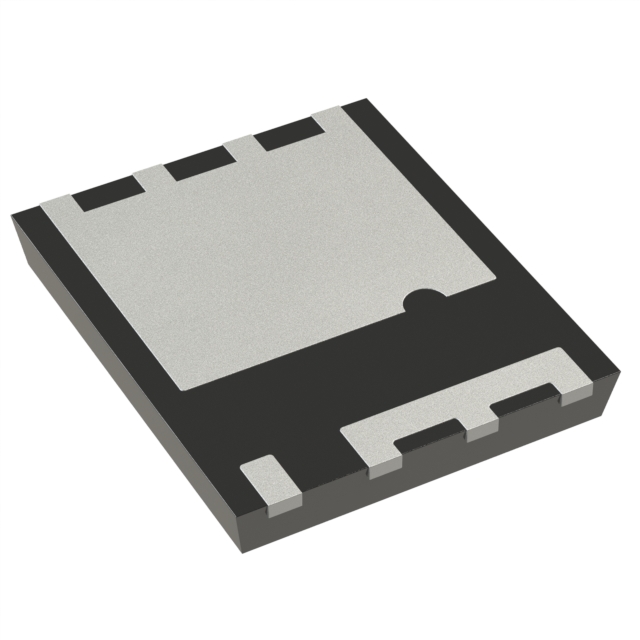

2EDN7523GXTMA1
IC GATE DRVR LOW-SIDE 8WSONManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies EiceDriver™ 2EDN7523GXTMA1 is a dual-channel, low-side gate driver designed for robust performance in demanding applications. This device features independent channels, each capable of sinking and sourcing 5A peak output current, facilitating rapid switching of N-channel MOSFETs. The inverting input logic simplifies control signal integration. With a supply voltage range from 4.5V to 20V and a typical rise and fall time of 5.3ns and 4.5ns respectively, the 2EDN7523GXTMA1 is well-suited for power supply, motor control, and industrial automation systems. The 8-WSON exposed pad package (PG-WSON-8-1) ensures effective thermal management for high-power operation across an ambient temperature range of -40°C to 150°C.
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 20V |
| Input Type | Inverting |
| Supplier Device Package | PG-WSON-8-1 |
| Rise / Fall Time (Typ) | 5.3ns, 4.5ns |
| Channel Type | Independent |
| Driven Configuration | Low-Side |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Programmable | Not Verified |
