2EDN7434BXTSA1
IC GATE DRVR LOW-SIDE SOT23-6Manufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More

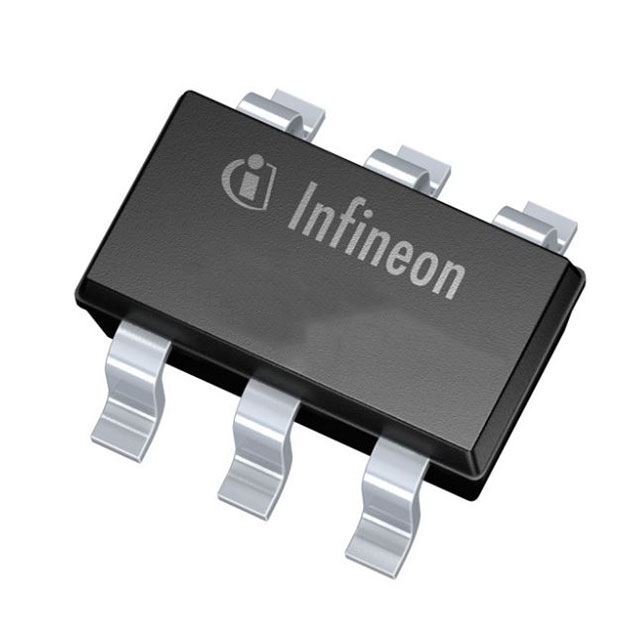

Infineon Technologies’ EiceDRIVER™ 2EDN7434BXTSA1 is a dual, low-side gate driver in a PG-SOT23-6-3 package. This non-inverting driver features independent channels, each capable of delivering 5A peak source and sink current. Designed for N-Channel MOSFETs, it operates over a supply voltage range of 4.5V to 20V, with logic thresholds of 1.4V (VIL) and 1.9V (VIH). Typical rise and fall times are 8.6ns and 6ns respectively. The device is surface mounted and supplied on tape and reel (TR). Its robust performance makes it suitable for applications in automotive and industrial power control systems. Operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 20V |
| Input Type | Non-Inverting |
| Supplier Device Package | PG-SOT23-6-3 |
| Rise / Fall Time (Typ) | 8.6ns, 6ns |
| Channel Type | Independent |
| Driven Configuration | Low-Side |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.4V, 1.9V |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Programmable | - |
