2EDL8024GXUMA1
IC GATE DRVR HI/LOW SIDE 8VDFNManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
High-Side and Low-Side Gate Driver IC Non-Inverting PG-VDSON-8-4
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

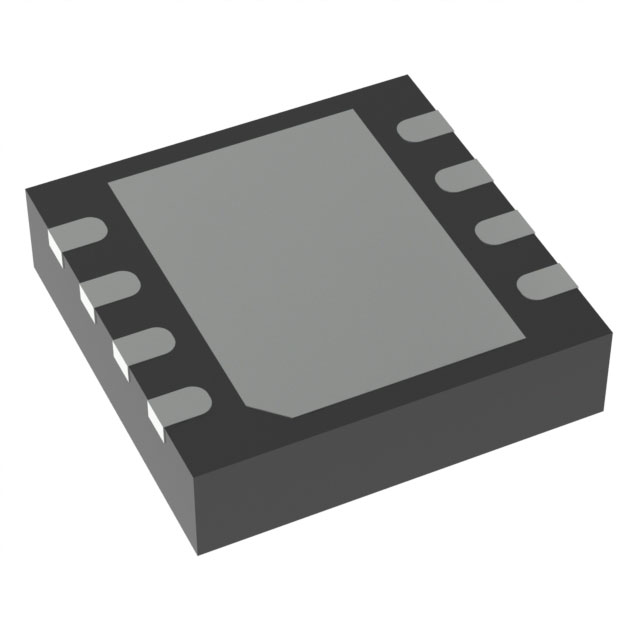

| Package / Case | 8-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 8V ~ 17V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 90 V |
| Supplier Device Package | PG-VDSON-8-4 |
| Rise / Fall Time (Typ) | 45ns, 45ns |
| Channel Type | Independent |
| Driven Configuration | High-Side and Low-Side |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Programmable | Not Verified |
