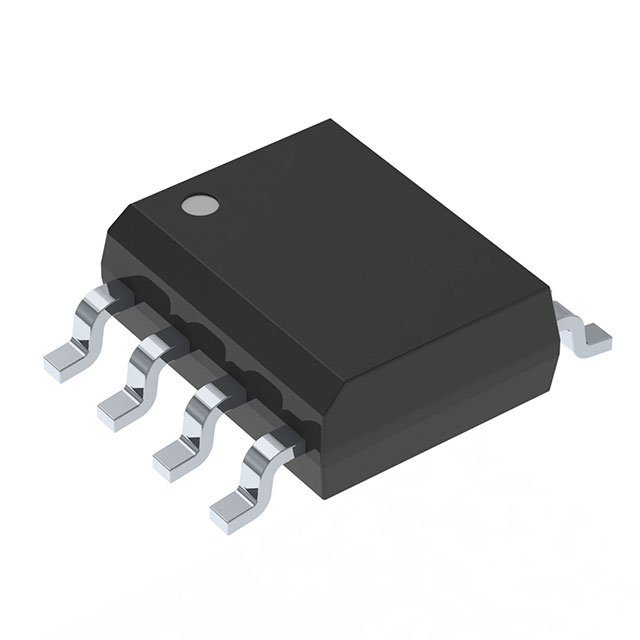

2ED21814S06JXUMA1
IC GATE DRVR HI/LOW SIDE 14SOICManufacturer: Infineon Technologies
Categories: Gate Drivers
Quality Control: Learn More
Infineon Technologies 2ED21814S06JXUMA1 is a high-side and low-side gate driver IC featuring independent channels and non-inverting inputs. This component is designed for driving IGBT and N-Channel MOSFETs, offering robust performance with a high-side bootstrap voltage capability of up to 675 V. It provides a peak output current of 2.5A for both source and sink, coupled with typical rise and fall times of 15ns. The device operates within a supply voltage range of 10V to 20V and supports logic voltage thresholds of 1.1V (VIL) and 1.7V (VIH). Packaged in a 14-SOIC (PG-DSO-14) surface-mount configuration, this driver is suitable for applications in industrial motor control and power factor correction. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 10V ~ 20V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 675 V |
| Supplier Device Package | PG-DSO-14 |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Channel Type | Independent |
| Driven Configuration | High-Side and Low-Side |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.1V, 1.7V |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A |
| Programmable | Not Verified |
