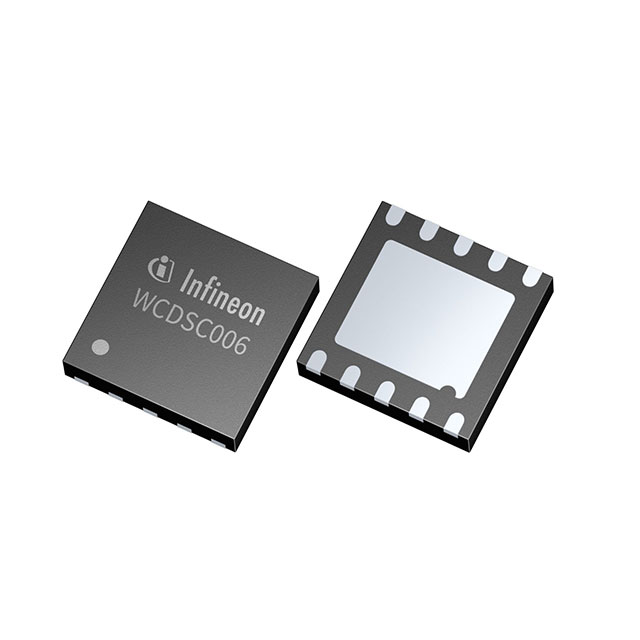

WCDSC006XUMA1
IC HALF BRIDGE DRIVER 2A 10WSONManufacturer: Infineon Technologies
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Infineon Technologies WCDSC006XUMA1 is a half-bridge driver from the EiceDriver™ series, featuring a PG-WSON-10 package. This general-purpose component is designed for applications requiring efficient power stage control. It delivers 2A continuous and peak output current per channel, supporting inductive, capacitive, and resistive loads. The device integrates robust fault protection mechanisms, including current limiting, shoot-through protection, and undervoltage lockout (UVLO). Its interface supports logic and PWM signals, enabling flexible system integration. Operating with a supply voltage range of 4.75V to 5.5V, the WCDSC006XUMA1 is suitable for surface mount applications and operates within a temperature range of -40°C to 125°C. This component is commonly utilized in power management solutions across various industrial and automotive sectors.
Additional Information
Series: EiceDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic, PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.75V ~ 5.5V |
| Rds On (Typ) | 800mOhm LS (Max), 2Ohm HS (Max) |
| Applications | General Purpose |
| Current - Output / Channel | 2A |
| Current - Peak Output | 2A |
| Technology | Power MOSFET |
| Voltage - Load | 4.75V ~ 5.5V |
| Supplier Device Package | PG-WSON-10 |
| Fault Protection | Current Limiting, Shoot-Through, UVLO |
| Load Type | Inductive, Capacitive, Resistive |
