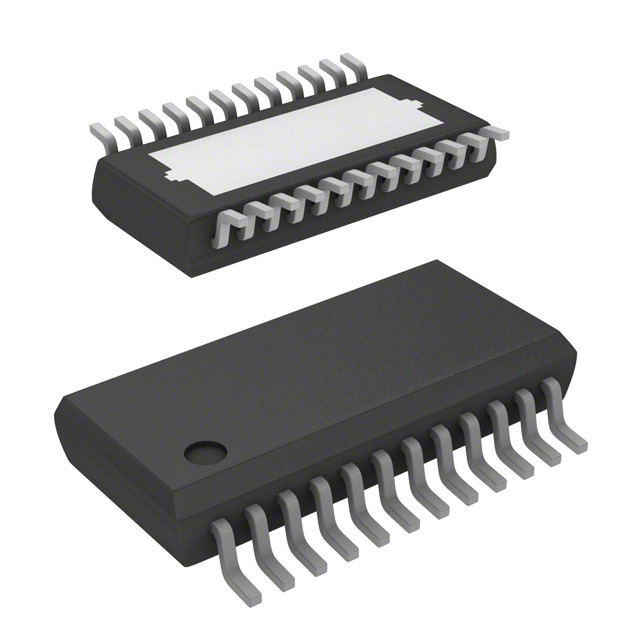

TLE94110ELXUMA1
IC HALF BRIDGE DRVR 500MA 24SSOPManufacturer: Infineon Technologies
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Infineon Technologies TLE94110ELXUMA1 is a half-bridge driver designed for AC motors, DC motors, and general-purpose power applications. This electronic component features an SPI interface and operates with a supply voltage range of 3V to 5.5V, supporting load voltages from 5.5V to 20V. Each channel provides a continuous output current of 500mA with a peak output of 2A. The device incorporates robust fault protection mechanisms, including over-temperature, short circuit, and undervoltage lockout (UVLO). Utilizing Power MOSFET technology, it offers a typical Rds On of 850mOhm for both low-side (LS) and high-side (HS) switches. The TLE94110ELXUMA1 is packaged in a 24-LSSOP (PG-SSOP-24-4) surface-mount configuration, supplied on tape and reel. Its design is suitable for inductive load types and operates across a wide temperature range of -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-LSSOP (0.154"", 3.90mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (10) |
| Voltage - Supply | 3V ~ 5.5V |
| Rds On (Typ) | 850mOhm LS, 850mOhm HS |
| Applications | AC Motors, DC Motors, General Purpose |
| Current - Output / Channel | 500mA |
| Current - Peak Output | 2A |
| Technology | Power MOSFET |
| Voltage - Load | 5.5V ~ 20V |
| Supplier Device Package | PG-SSOP-24-4 |
| Fault Protection | Over Temperature, Short Circuit, UVLO |
| Load Type | Inductive |
