TLE94106ELXUMA1
IC HALF BRIDGE DRVR 500MA 24SSOPManufacturer: Infineon Technologies
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Infineon Technologies TLE94106ELXUMA1 is a half-bridge driver designed for DC motor control and general-purpose power applications. This component features six half-bridge output configurations, capable of delivering 500mA continuous current per channel and a peak output current of 2A. Fault protection is integrated, including over-temperature, over-voltage, and under-voltage lockout (UVLO) mechanisms. The device utilizes Power MOSFET technology and offers an SPI interface for control. It supports inductive load types and operates from a supply voltage of 3V to 5.5V, with a load voltage range of 5.5V to 20V. The TLE94106ELXUMA1 is housed in a 24-LSSOP (PG-SSOP-24) package with an exposed pad for efficient heat dissipation and is supplied on tape and reel. Typical ON-resistance for both high-side (HS) and low-side (LS) switches is 850mOhm. This component is suitable for automotive and industrial applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |

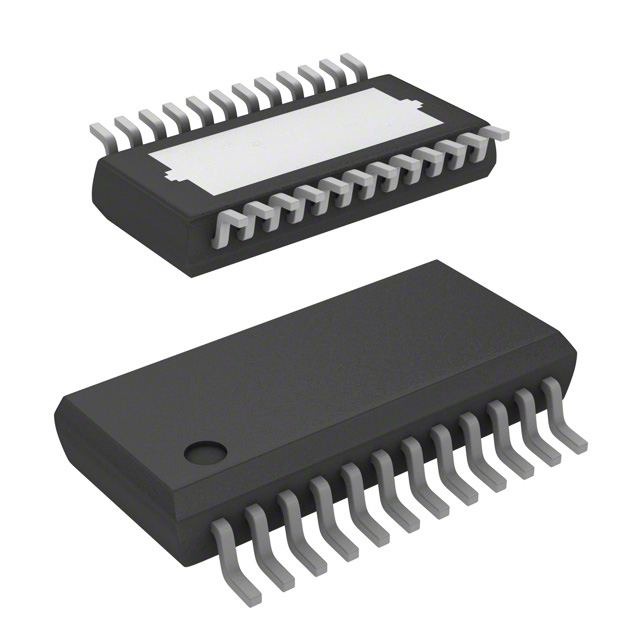

| Package / Case | 24-LSSOP (0.154"", 3.90mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (6) |
| Voltage - Supply | 3V ~ 5.5V |
| Rds On (Typ) | 850mOhm LS, 850mOhm HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 500mA |
| Current - Peak Output | 2A |
| Technology | Power MOSFET |
| Voltage - Load | 5.5V ~ 20V |
| Supplier Device Package | PG-SSOP-24 |
| Fault Protection | Over Temperature, Over Voltage, UVLO |
| Load Type | Inductive |
