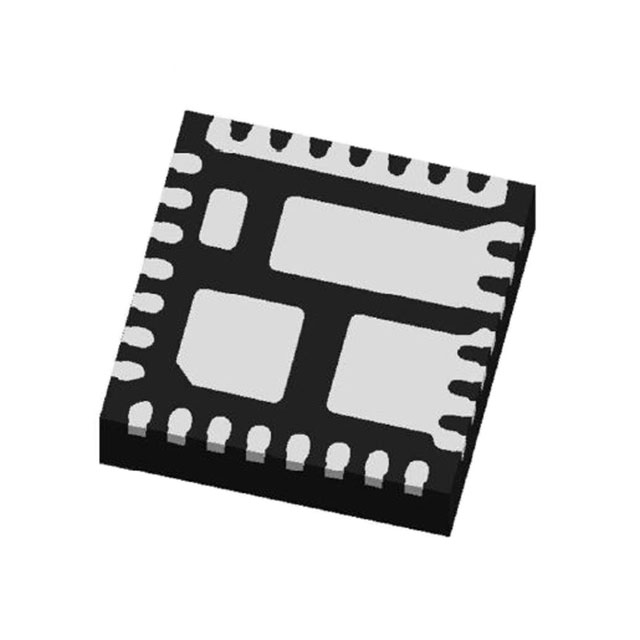

TDA21241AUMA1
IC HALF BRIDGE DRIVER 35A 30IQFNManufacturer: Infineon Technologies
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Infineon Technologies TDA21241AUMA1 is a Half Bridge Driver designed for synchronous buck converters. This electronic component features a 35A output current per channel and is built on Power MOSFET technology. The driver incorporates a bootstrap circuit for high-side gate drive and offers essential fault protection including over temperature, shoot-through, and undervoltage lockout (UVLO). It interfaces via PWM signals and is suitable for inductive loads. The TDA21241AUMA1 operates within a load voltage range of 5V to 16V and a supply voltage range of 4.5V to 7V, with an operating temperature of -40°C to 125°C. The component is supplied in a 30-IQFN package (PG-IQFN-30-2) and is available on Tape & Reel (TR). This device finds application in power supply solutions for computing, industrial, and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-PowerTFQFN |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 7V |
| Rds On (Typ) | - |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 35A |
| Current - Peak Output | - |
| Technology | Power MOSFET |
| Voltage - Load | 5V ~ 16V |
| Supplier Device Package | PG-IQFN-30-2 |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Load Type | Inductive |
