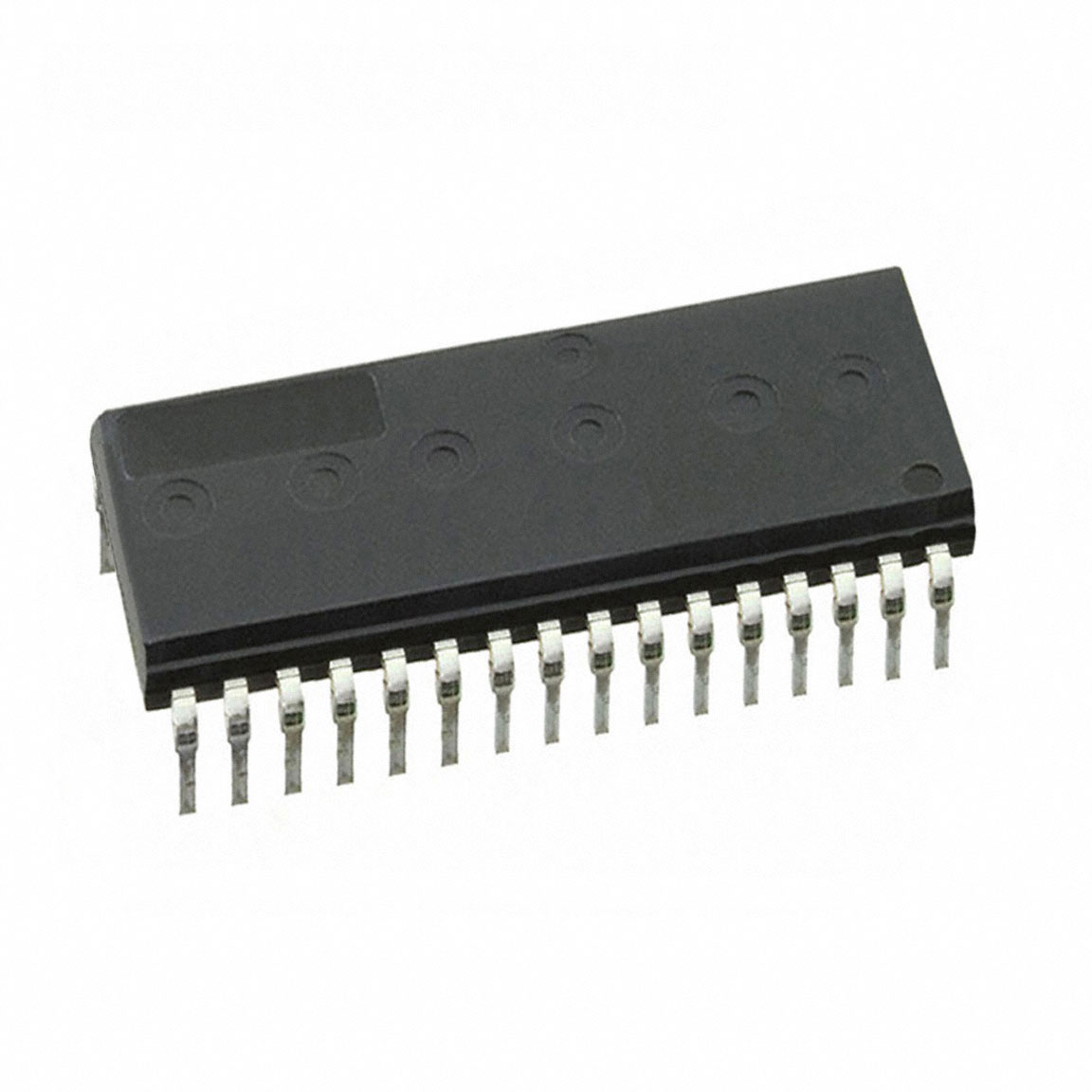

IRSM516-076DA2
IC HALF BRIDGE DRIVER 4A 23DIPManufacturer: Infineon Technologies
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Infineon Technologies IRSM516-076DA2 is a µIPM™-DIP series Half Bridge driver IC designed for AC motor control applications. This IGBT-based module delivers 4A continuous output current and a 15A peak output current per channel, supporting inductive load types. It features a bootstrap circuit for gate drive voltage generation and is equipped with undervoltage lockout (UVLO) for fault protection. The device operates with a supply voltage range of 13.5V to 16.5V and can handle load voltages up to 480V. With its 23-DIPA package and through-hole mounting, the IRSM516-076DA2 is suitable for applications requiring robust half-bridge functionality in industrial and automotive sectors. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: µIPM™-DIPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tube |
| Package / Case | 23-PowerDIP Module (0.551"", 14.00mm) |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 13.5V ~ 16.5V |
| Rds On (Typ) | - |
| Applications | AC Motors |
| Current - Output / Channel | 4A |
| Current - Peak Output | 15A |
| Technology | IGBT |
| Voltage - Load | 480V (Max) |
| Supplier Device Package | 23-DIPA |
| Fault Protection | UVLO |
| Load Type | Inductive |
