IR3551MTRPBF
IC HALF BRIDGE DRIVER 50A PQFNManufacturer: Infineon Technologies
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Infineon Technologies PowIRstage® IR3551MTRPBF is a high-performance half-bridge driver designed for synchronous buck converters and voltage regulators. This advanced power stage solution integrates a high-side and low-side MOSFET with a driver in a compact PQFN (5x6) package. The IR3551MTRPBF features a 50A continuous output current capability and a 75A peak output current, making it suitable for demanding power delivery applications. Integrated fault protection includes over-temperature and undervoltage lockout (UVLO). Key operational features include a bootstrap circuit for efficient high-side driving, diode emulation for improved light-load efficiency, and a status flag for monitoring. The device supports PWM interface and is designed for inductive load types. Mounting is via surface mount, and it operates within a temperature range of -40°C to 125°C (TJ). This component is commonly employed in computing, server, and industrial power supply designs.
Additional Information
Series: PowIRstage®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Diode Emulation, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 7V |
| Rds On (Typ) | - |
| Applications | Synchronous Buck Converters, Voltage Regulators |
| Current - Output / Channel | 50A |
| Current - Peak Output | 75A |
| Technology | Power MOSFET |
| Voltage - Load | 4.5V ~ 15V |
| Supplier Device Package | PQFN (5x6) |
| Fault Protection | Over Temperature, UVLO |
| Load Type | Inductive |
Request a Quote
Clients Also Buy
IR3742MTRPBF
IC HALF BRIDGE DRIVER 20A 17QFN
IR3548MTRPBF
IC REG CONV CPU 1OUT 49QFN

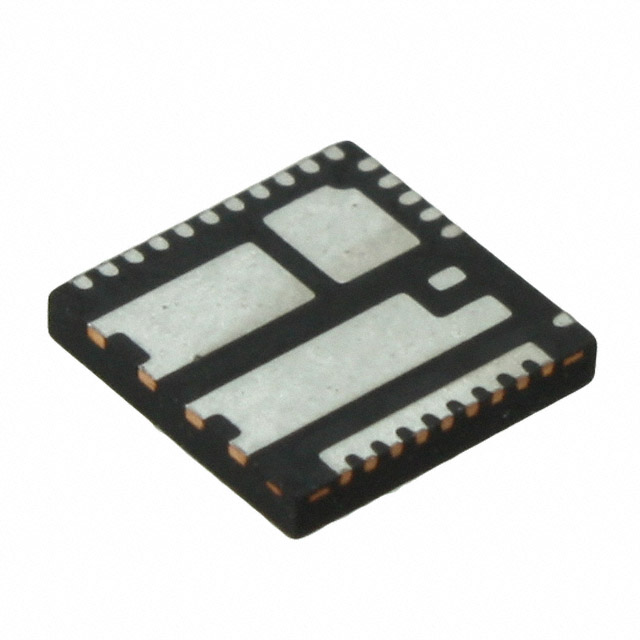

IR3556MTRPBF
