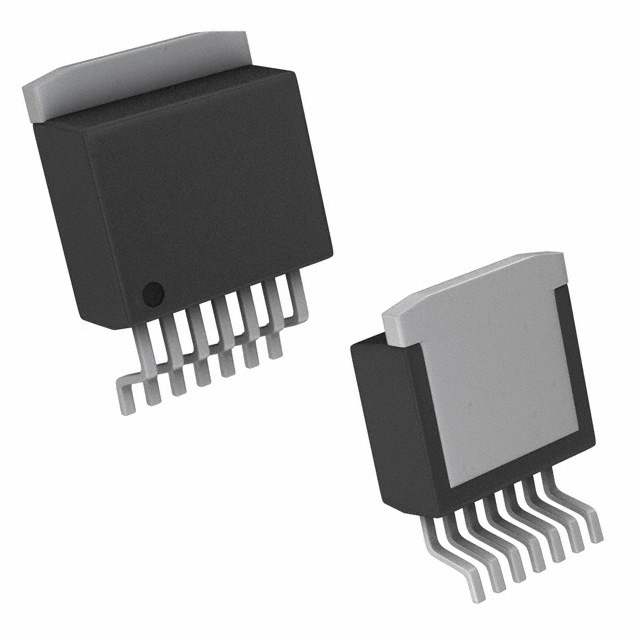

BTN8982TAAUMA1
IC HALF BRIDGE DRVR 50A TO263-7Manufacturer: Infineon Technologies
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge Driver DC Motors, General Purpose DMOS PG-TO263-7-1
Additional Information
Series: NovalithIC™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Latch Function, Slew Rate Controlled, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 5.5V ~ 40V |
| Rds On (Typ) | 4.7mOhm LS, 5.3mOhm HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 50A |
| Current - Peak Output | 117A |
| Technology | DMOS |
| Voltage - Load | 5.5V ~ 40V |
| Supplier Device Package | PG-TO263-7-1 |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Load Type | Inductive |
