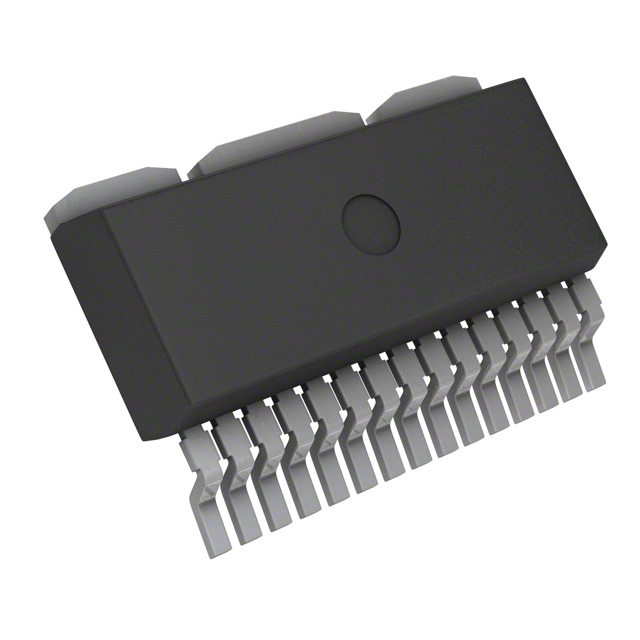

BTM7810KAUMA1
IC HALF BRIDGE DRIVER TO263-15Manufacturer: Infineon Technologies
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Infineon Technologies BTM7810KAUMA1, a TrilithIC™ Half Bridge Driver, is engineered for demanding DC motor control applications. This device, housed in a PG-TO263-15-1 package suitable for surface mounting via Tape & Reel (TR), delivers robust performance for general-purpose use. Featuring DMOS technology, it supports inductive load types and operates across a voltage range of 1.8V to 42V for both supply and load. The output configuration provides two half-bridge channels. Key specifications include a typical Rds On of 14mOhm for the low-side and 26mOhm for the high-side, with a peak output current of 42A. Integrated fault protection mechanisms include open load detection, over-temperature protection, short-circuit protection, and undervoltage lockout (UVLO). A status flag feature provides operational feedback. This component is commonly utilized in automotive and industrial automation sectors.
Additional Information
Series: TrilithIC™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-18 (15 Leads + 3 Tabs) |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 1.8V ~ 42V |
| Rds On (Typ) | 14mOhm LS, 26mOhm HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | - |
| Current - Peak Output | 42A |
| Technology | DMOS |
| Voltage - Load | 1.8V ~ 42V |
| Supplier Device Package | PG-TO263-15-1 |
| Fault Protection | Open Load Detect, Over Temperature, Short Circuit, UVLO |
| Load Type | Inductive |
Request a Quote
Clients Also Buy

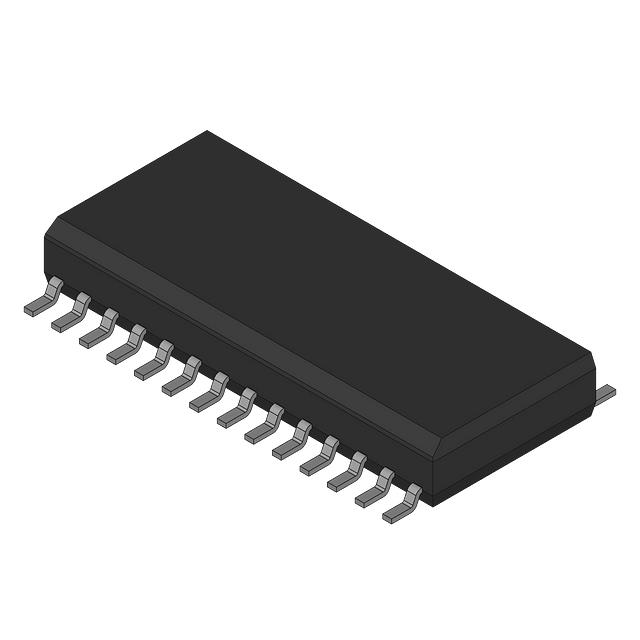

BTS7700GNUMA1
