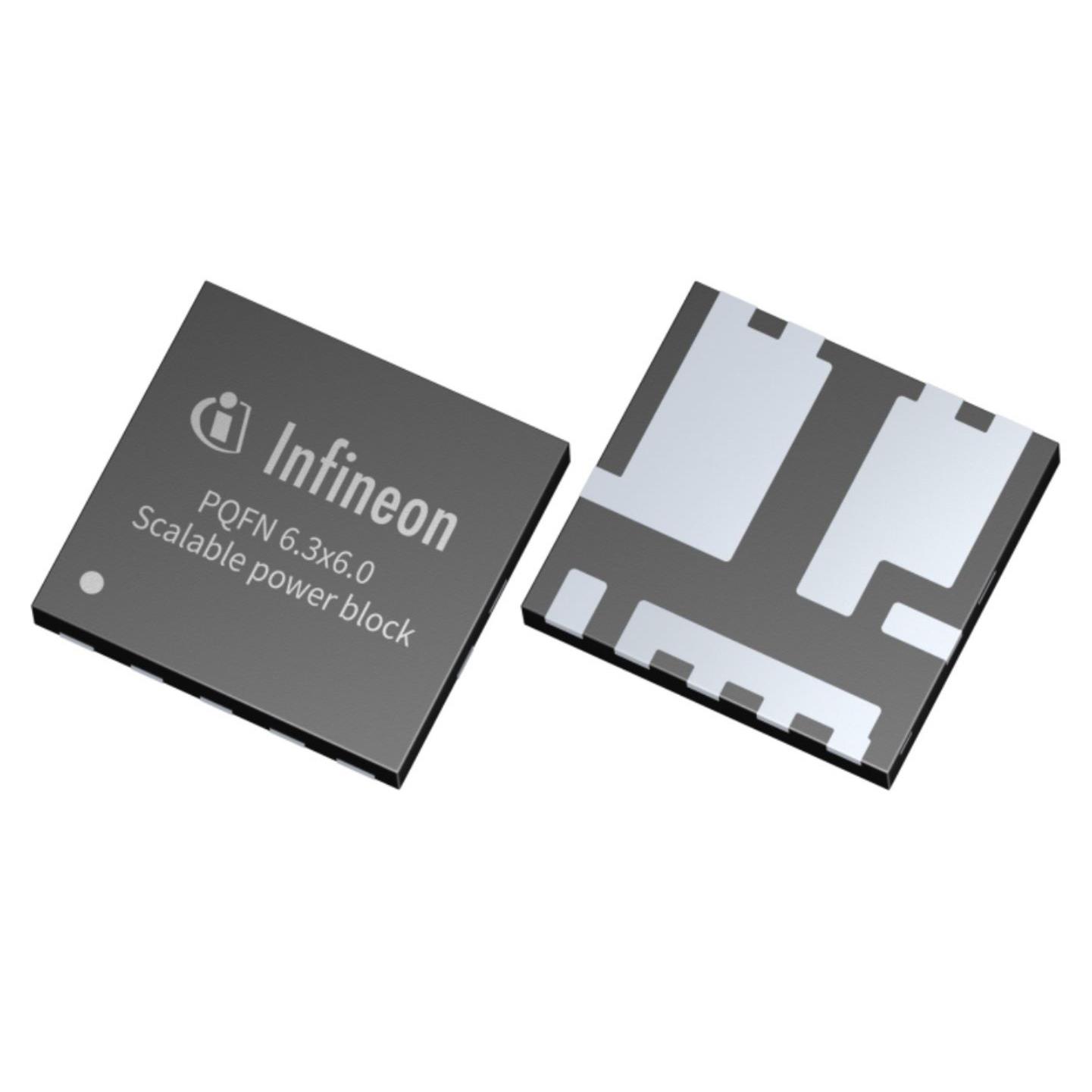

ISG0613N04NM6HATMA1
ISG0613N04NM6HATMA1Manufacturer: Infineon Technologies
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 40V 42A (Ta), 299A (Tc) 3W (Ta), 167W (Tc) Surface Mount PG-VITFN-10-1
Additional Information
Series: OptiMOS™ 6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-PowerVDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Half Bridge) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 3W (Ta), 167W (Tc) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 42A (Ta), 299A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 6200pF @ 20V |
| Rds On (Max) @ Id, Vgs | 0.88mOhm @ 50A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 104nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.8V @ 780µA |
| Supplier Device Package | PG-VITFN-10-1 |
| Grade | - |
| Qualification | - |
Request a Quote
