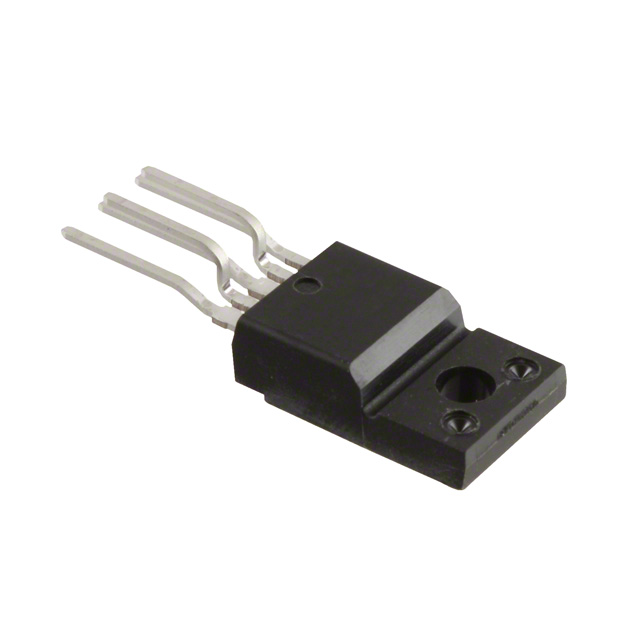

IRFI4024H-117P
MOSFET 2N-CH 55V 11A TO220-5Manufacturer: Infineon Technologies
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Infineon Technologies' IRFI4024H-117P is a dual N-channel MOSFET array designed for high-efficiency power switching applications. This component features a Drain-Source Voltage (Vdss) of 55V and a continuous Drain Current (Id) of 11A at 25°C, with a low on-resistance (Rds On) of 60mOhm at 7.7A and 10V. The MOSFET array offers a total power dissipation of 14W and a Gate Charge (Qg) of 13nC (max) at 10V. Its TO-220-5 Full-Pak package with through-hole mounting is suitable for robust thermal management. Operating across a wide temperature range of -55°C to 150°C, this device is found in automotive, industrial automation, and power supply sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 Full Pack |
| Mounting Type | Through Hole |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 14W |
| Drain to Source Voltage (Vdss) | 55V |
| Current - Continuous Drain (Id) @ 25°C | 11A |
| Input Capacitance (Ciss) (Max) @ Vds | 320pF @ 50V |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 7.7A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 13nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 4V @ 25µA |
| Supplier Device Package | TO-220-5 Full-Pak |
