IRF3546MTRPBF

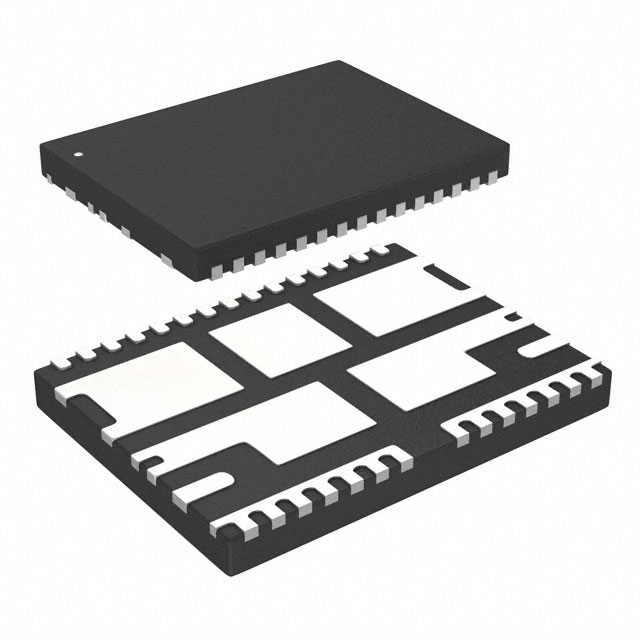

MOSFET 4N-CH 25V 16A/20A 41QFNManufacturer: Infineon Technologies
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Infineon Technologies' IRF3546MTRPBF is a 4-channel N-channel MOSFET array featuring 25V drain-source voltage and a continuous drain current of 16A (Tc) per channel, with a peak current of 20A (Tc). This device is housed in a 41-PQFN (6x8) package for surface mounting and offers a low on-resistance of 3.9mOhm at 27A and 10V. Key characteristics include a logic-level gate drive, maximum gate charge of 15nC at 4.5V, and input capacitance of 1310pF at 13V. The operating temperature range is -40°C to 150°C. This MOSFET array is suitable for applications in power management, battery charging, and automotive systems. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 41-PowerVFQFN |
| Mounting Type | Surface Mount |
| Configuration | 4 N-Channel |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | - |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc), 20A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1310pF @ 13V |
| Rds On (Max) @ Id, Vgs | 3.9mOhm @ 27A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 4.5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2.1V @ 35µA |
| Supplier Device Package | 41-PQFN (6x8) |
