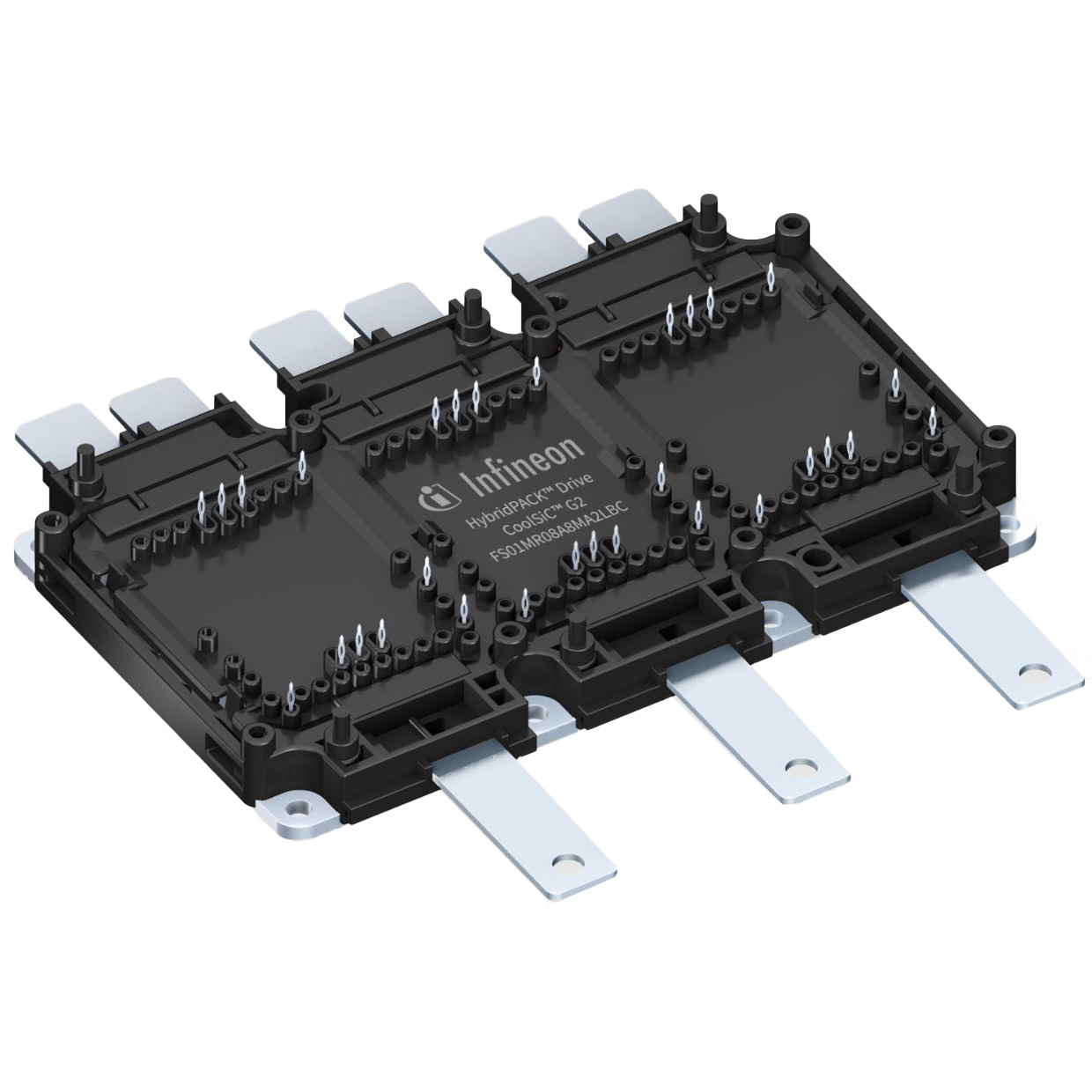

FS01MR08A8MA2LBCHPSA1
MOSFET 6N-CH 750V 620AManufacturer: Infineon Technologies
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 750V 620A (Tj) Chassis Mount
Additional Information
Series: HybridPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Configuration | 6 N-Channel |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | Silicon Carbide (SiC) |
| Power - Max | - |
| Drain to Source Voltage (Vdss) | 750V |
| Current - Continuous Drain (Id) @ 25°C | 620A (Tj) |
| Input Capacitance (Ciss) (Max) @ Vds | 43000pF @ 470V |
| Rds On (Max) @ Id, Vgs | 1.69mOhm @ 620A, 18V |
| Gate Charge (Qg) (Max) @ Vgs | 1480nC @ 18V |
| FET Feature | Silicon Carbide (SiC) |
| Vgs(th) (Max) @ Id | 4.55V @ 200mA |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
Request a Quote
