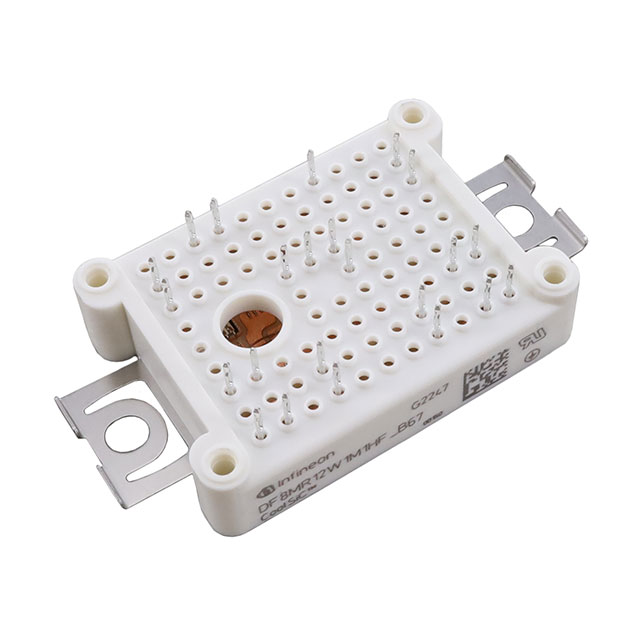

DF8MR12W1M1HFB67BPSA1
SIC 2N-CH 1200V 45A AG-EASY1BManufacturer: Infineon Technologies
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 1200V (1.2kV) 45A Chassis Mount AG-EASY1B
Additional Information
Series: EasyPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | Silicon Carbide (SiC) |
| Power - Max | - |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 45A |
| Input Capacitance (Ciss) (Max) @ Vds | 4400pF @ 800V |
| Rds On (Max) @ Id, Vgs | 16.2mOhm @ 50A, 18V |
| Gate Charge (Qg) (Max) @ Vgs | 149nC @ 18V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 5.15V @ 20mA |
| Supplier Device Package | AG-EASY1B |
