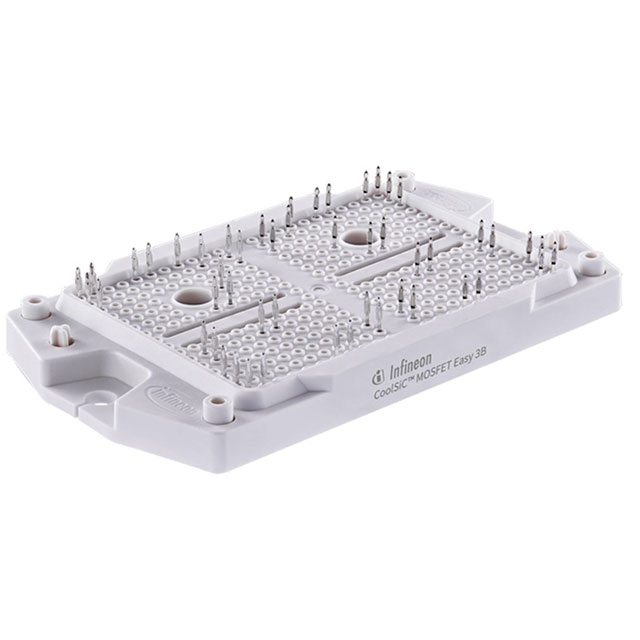

DF419MR20W3M1HFB11BPSA1
MOSFET 4N-CH 2000V 50A AG-EASY3BManufacturer: Infineon Technologies
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 2000V (2kV) 50A (Tj) Chassis Mount AG-EASY3B
Additional Information
Series: EasyPACK™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 78 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Configuration | 4 N-Channel |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | - |
| Drain to Source Voltage (Vdss) | 2000V (2kV) |
| Current - Continuous Drain (Id) @ 25°C | 50A (Tj) |
| Input Capacitance (Ciss) (Max) @ Vds | 7240pF @ 1.2kV |
| Rds On (Max) @ Id, Vgs | 26.5mOhm @ 60A, 18V |
| Gate Charge (Qg) (Max) @ Vgs | 234nC @ 18V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 5.15V @ 34mA |
| Supplier Device Package | AG-EASY3B |
