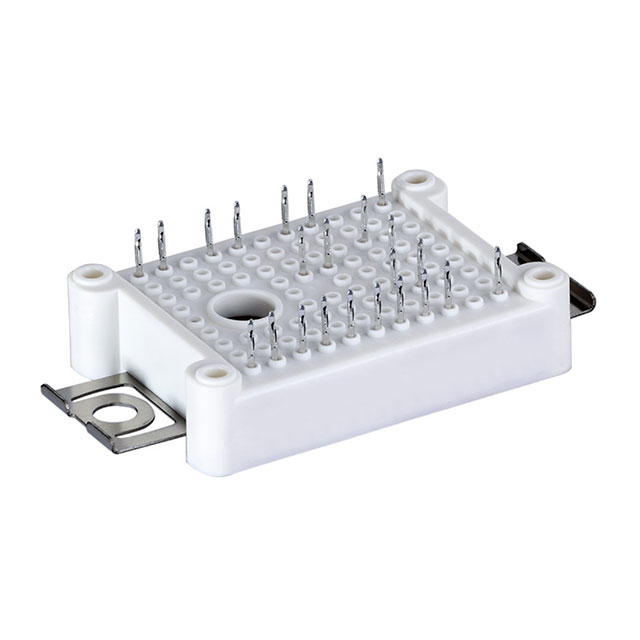

DF16MR12W1M1HFB67BPSA1
MOSFET 2N-CH 1200V 25AManufacturer: Infineon Technologies
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 1200V (1.2kV) 25A Chassis Mount
Additional Information
Series: EasyPACK™, CoolSiC™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Mounting Type | Chassis Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | - |
| Power - Max | - |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 25A |
| Input Capacitance (Ciss) (Max) @ Vds | 2200pF @ 800V |
| Rds On (Max) @ Id, Vgs | 32.3mOhm @ 25A, 18V |
| Gate Charge (Qg) (Max) @ Vgs | 74nC @ 18V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 5.15V @ 10mA |
Request a Quote
Clients Also Buy

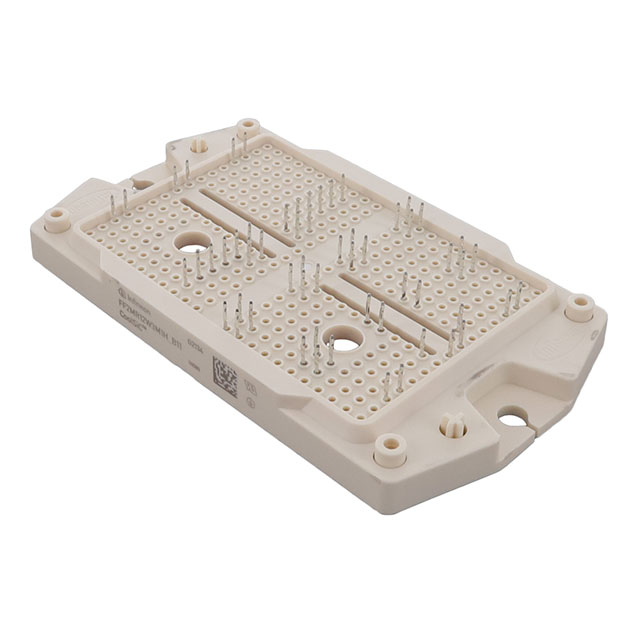

FF2MR12W3M1HB11BPSA1
SIC 4N-CH 1200V AG-EASY3B

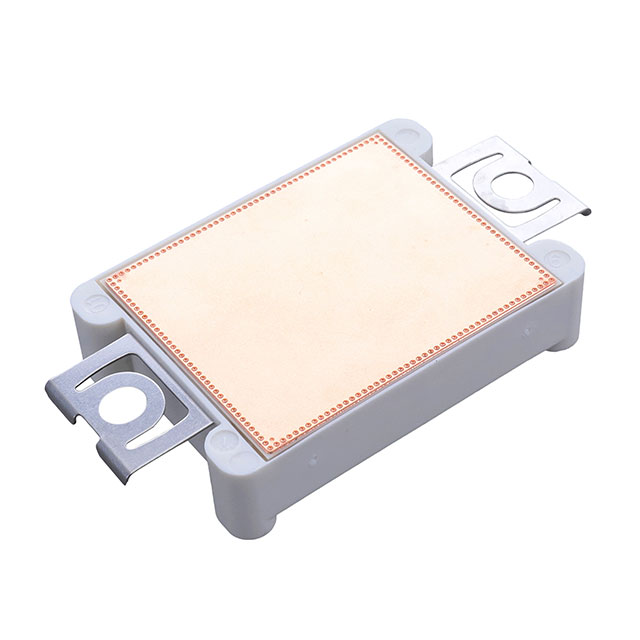

FS55MR12W1M1HB11NPSA1
