BSG0810NDIATMA1
MOSFET 2N-CH 25V 19A/39A TISON8Manufacturer: Infineon Technologies
Categories: FET, MOSFET Arrays
Quality Control: Learn More

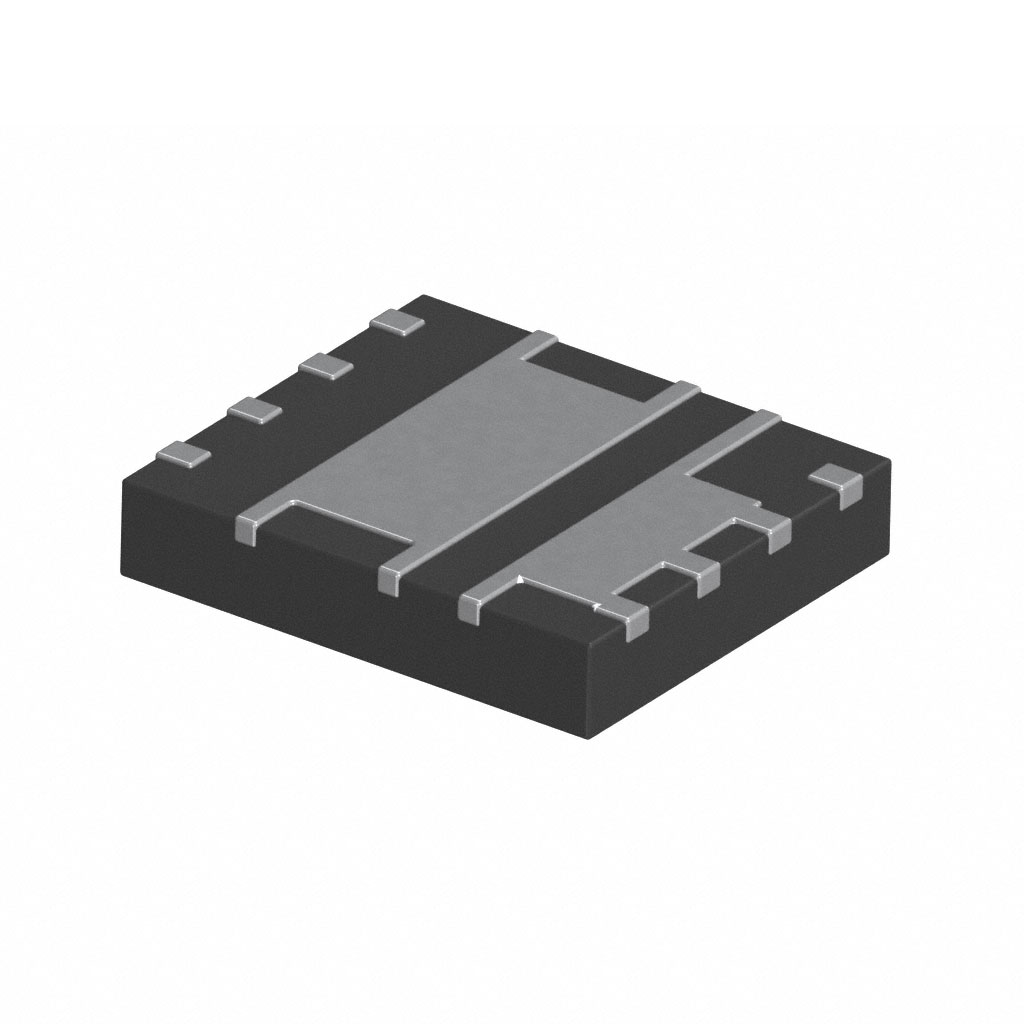

Mosfet Array 25V 19A, 39A 2.5W Surface Mount PG-TISON-8
Additional Information
Series: Optimos™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| Operating Temperature | -55°C ~ 155°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.5W |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 19A, 39A |
| Input Capacitance (Ciss) (Max) @ Vds | 1040pF @ 12V |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 20A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 8.4nC @ 4.5V |
| FET Feature | Logic Level Gate, 4.5V Drive |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | PG-TISON-8 |
