BSC112N06LDATMA1
MOSFET 2N-CH 60V 20A 8TDSONManufacturer: Infineon Technologies
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 60V 20A (Tc) 65W (Tc) Surface Mount PG-TDSON-8-4
Additional Information
Series: OptiMOS™-T2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 65W (Tc) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 4020pF @ 30V |
| Rds On (Max) @ Id, Vgs | 11.2mOhm @ 17A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 55nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2.2V @ 28µA |
| Supplier Device Package | PG-TDSON-8-4 |
Request a Quote
Clients Also Buy
BSC072N04LDATMA1
MOSFET 2N-CH 40V 20A 8TDSON

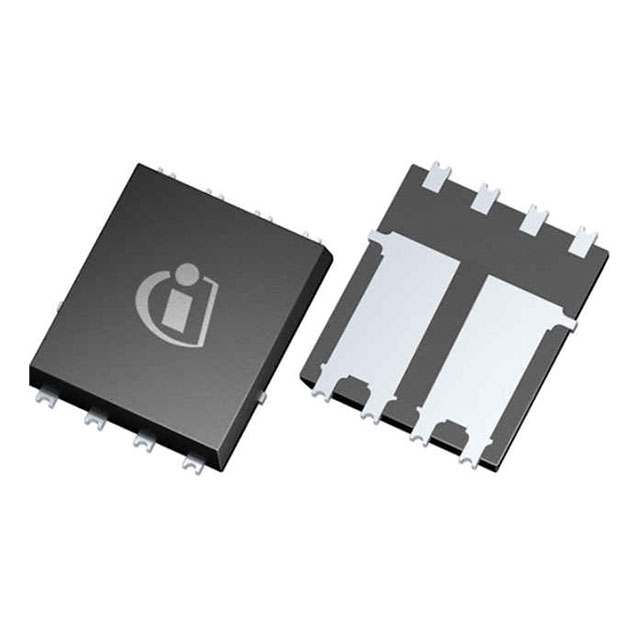

IPG20N04S4L18AATMA1
