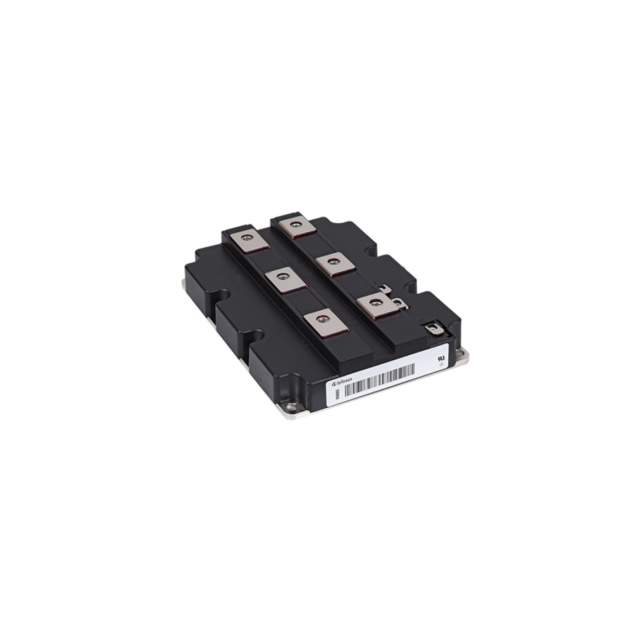

DZ3600S17K3B2NOSA1
DIODE MOD GP 1700V AIHM190-1Manufacturer: Infineon Technologies
Categories: Diode Arrays
Quality Control: Learn More
Infineon Technologies DZ3600S17K3B2NOSA1 is a high-performance diode module featuring three independent diodes. Each diode offers a maximum DC reverse voltage of 1700 V and a forward voltage drop of 2.2 V at 3600 A. The module utilizes standard recovery technology with a speed specification exceeding 500 ns. Designed for robust operation, it supports an operating junction temperature range of -40°C to 125°C. The component is housed in an A-IHM190-1 module package, suitable for chassis mounting, and is supplied in tray packaging. This diode array is commonly employed in industrial applications such as power conversion, motor drives, and renewable energy systems where high voltage and current handling are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 3 Independent |
| Current - Average Rectified (Io) (per Diode) | - |
| Supplier Device Package | A-IHM190-1 |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 1700 V |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V @ 3600 A |
Request a Quote
