DD250S65K3C1NPSA1
DIODE MOD GP 6500V 250A AIHV130Manufacturer: Infineon Technologies
Categories: Diode Arrays
Quality Control: Learn More

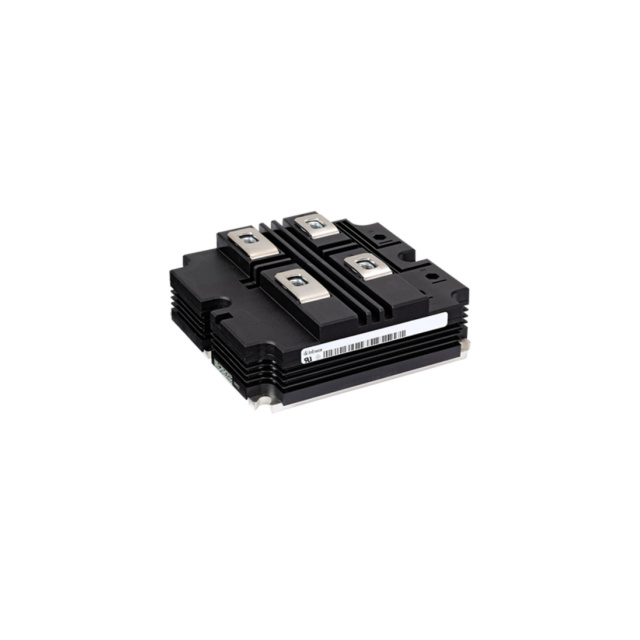

Infineon Technologies' DD250S65K3C1NPSA1 is a high-voltage diode module featuring two independent diodes. This component is designed for demanding applications requiring robust power handling capabilities, with a maximum DC reverse voltage of 6500V and an average rectified current of 250A per diode. The forward voltage drop is specified at 3.5V at 250A. The module utilizes standard recovery technology with a speed rating of >500ns and >200mA (Io). Mounting is facilitated via chassis mount, and the component is supplied in a tray packaging. This diode array is suitable for use in power conversion systems, industrial motor drives, and high-voltage power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 250A (DC) |
| Supplier Device Package | A-IHV130-6 |
| Operating Temperature - Junction | -50°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 6500 V |
| Voltage - Forward (Vf) (Max) @ If | 3.5 V @ 250 A |
