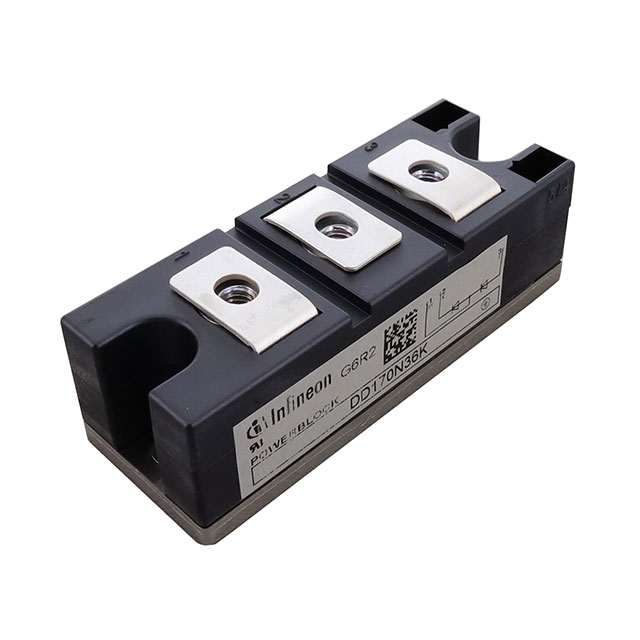

DD170N36KHPSA1
DIODE MOD GP 3600V 170A BGPB34ATManufacturer: Infineon Technologies
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Series Connection 3600 V 170A Chassis Mount Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 170A |
| Supplier Device Package | BG-PB34AT-1 |
| Operating Temperature - Junction | 150°C |
| Voltage - DC Reverse (Vr) (Max) | 3600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.82 V @ 600 A |
| Current - Reverse Leakage @ Vr | 25 mA @ 3600 V |
